0.6/1KV Aerial Drop Cable , Aerial Electrical Cable Overhead Line Triplex  ASTM B231

0.6/1KV Aerial Drop Cable , Aerial Electrical Cable Overhead Line Triplex ASTM B231

  • Highlight

    aerial electrical cable

    ,

    aerial insulated cable

  • Type
    Low Voltage
  • Conductor Material
    Aluminum
  • Insulation Material
    XLPE
  • Core Identification
    Ribs
  • Working Temperature
    90 Degrees
  • Standard
    ASTM B231
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    KEMA
  • Minimum Order Quantity
    1000m
  • Price
    0.19-10.99USD/m
  • Packaging Details
    Wooden Drum/ Steel Drum
  • Delivery Time
    30 Days
  • Supply Ability
    1000km per Month

0.6/1KV Aerial Drop Cable , Aerial Electrical Cable Overhead Line Triplex ASTM B231

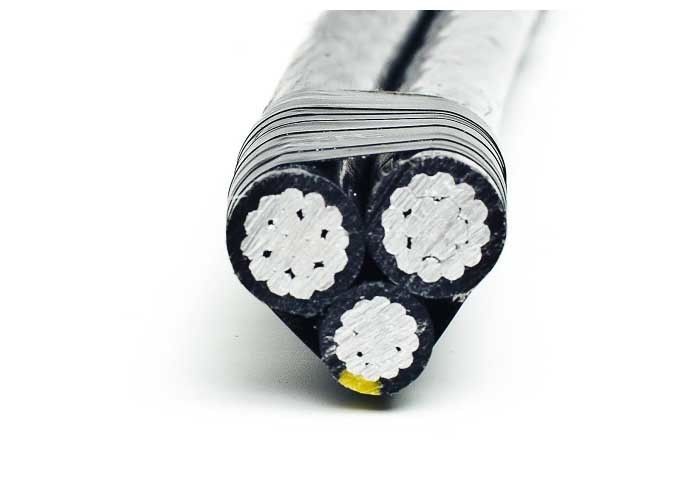

0.6/1KV Low Voltage Overhead Line Triplex ABC Cable ASTM B231



1. Application

Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system.

It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

Caledonian LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance), as a secondary cable (pole to pole) or street lighting.

This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140. It is not flame retardant. But this could be if requested change to a flame retardant cable.

2. Standard

Basic design to BS 7870 / TNB Specification(IEC 60502) / HD 626 S1 / NFC 33-209 / AS/NZS 3560-1 standards



Conductor Aluminium conductor, round stranded compressed (RM).
Insulation XPLE compound, UV-resistant.
Core Identification 1, 2 resp. 3 raised longitudinal ribs on the surface of the cores. The surface of the neutral core should have at least 12 ribs for cross-sections up to 50 mm^2 and a minimum of 16 ribs for cores above 50 mm^2. In the case of five core bundles the surface of the protective core should be smooth.



4. Electrical Properties

Rated Voltage 0.6/1kV
Test Voltage 4 Veff kV
Minimum Laying Temperature -20°C
Operating Temperature -40°C~ +90°C
Maximum Short-circuit Temperature 250°C
Maximum Conductor Temperature 80°C
Minimum Bending Radius 18×OD





5. Construction Parameters

NFC 33-209

Number of Cores x Nominal Cross Section Overal Diameter Weight Maximum Conductor Resistance Minimum Breaking Load Current Rating
No.×mm^2 mm Kg/Km Ω/Km KN A
2x10 RM 12.8 93 3.080 1.5 38
4x10 RM 15.4 183 3.080 1.5 38
2x16 RM 14.8 129 1.910 2.3 72
2x16 RN + 2x1.5 RE 14.8 176 1.910/12.100 2.3 72
4x16 RM 17.8 257 1.910 2.3 72
4x16 RN + 2x1.5 RE 17.8 304 1.910/12.100 2.3 72
2x25 RM 18.0 202 1.200 3.8 107
2x25 RM + 2x1.5 RE 18.0 249 1.200/12.100 3.8 107
4x25 RM 21.7 404 1.200 3.8 107
4x25 RM + 2x1.5 RE 21.7 451 1.200/12.100 3.8 107
2x35 RM 20.8 269 0.868 5.2 132
2x35 RM + 2x1.5 RE 20.8 316 0.868/12.100 5.2 132
4x35 RM 25.1 539 0.868 5.2 132
4x35 RM + 2x1.5 RE 25.1 586 0.868/12.100 5.2 132
2x50 RM 23.4 352 0.641 7.6 165
2x50 RM + 2x1.5 RE 23.4 399 0.641/12.100 7.6 165
1x54.6 RM + 3x25 RM 21.7 507 0.630/1.200 3.8 107
1x54.6 RM + 3x25 RM + 1x16 RM 24.3 573 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x25 RM + 2x16 RM 29.7 639 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x25 RM + 3x16 RM 31.1 705 0.630/1.200/1.910 3.8/2.3 107/72
1x54.6 RM + 3x35 RM 25.1 615 0.630/0.868 5.2 132
1x54.6 RM + 3x35 RM + 1x16 RM 28.1 680 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 2x16 RM 34.3 748 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 3x16 RM 35.9 814 0.630/0.868/1.910 5.2/2.3 132/72
1x54.6 RM + 3x35 RM + 1x25 RM 28.1 714 0.630/0.868/1.200 5.2/3.8 132/107
1x54.6 RM + 3x50 RM 28.2 741 0.630/0.641 7.6 165
1x54.6 RM + 3x50 RM + 1x16 RM 31.6 806 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 2x16 RM 38.6 875 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 3x16 RM 40.4 940 0.630/0.641/1.910 7.6/2.3 165/72
1x54.6 RM + 3x50 RM + 1x25 RM 31.6 841 0.630/0.641/1.200 7.6/3.8 165/107
1x54.6 RM + 3x70 RM 33.0 950 0.630/0.443 10.2 205
1x54.6 RM + 3x70 RM + 1x16 RM 37.0 1014 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 2x16 RM 45.2 1083 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 3x16 RM 47.3 1148 0.630/0.443/1.910 10.2/2.3 205/72
1x54.6 RM + 3x70 RM + 1x25 RM 37.0 1048 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x70 RM + 2x25 RM 45.2 1150 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x70 RM + 3x25 RM 47.3 1250 0.630/0.443/1.200 10.2/3.8 205/107
1x54.6 RM + 3x95 RM 37.4 1176 0.630/0.320 13.5 240
1x54.6 RM + 3x95 RM + 1x16 RM 41.9 1243 0.630/0.320/1.910 13.5/2.3 240/72

Other cross-sections can be offered upon request.
