Quintuple Flexible Aerial Cable 0.6/1kV RM Conductor  For Overhead Power Lines

Quintuple Flexible Aerial Cable 0.6/1kV RM Conductor For Overhead Power Lines

  • High Light

    aerial electrical cable

    ,

    aerial insulated cable

  • Standard
    BS Standard
  • Conductor Type
    RM
  • Application
    Overhead Power Transmission Lines
  • Performance
    UV-resistant
  • Operating Temp.
    90℃
  • Sample
    Available
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    KEMA
  • Minimum Order Quantity
    1000m
  • Price
    0.19-10.99USD/m
  • Packaging Details
    Wooden Drum/ Steel Drum
  • Delivery Time
    30 Days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000km per Month

Quintuple Flexible Aerial Cable 0.6/1kV RM Conductor For Overhead Power Lines

Quintuple Aerial Bundled Cable 0.6/1kV for Overhead Power Lines



Aerial bundled cables (also aerial bundled conductors or simply ABC) are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. This contrasts with the traditional practice of using uninsulated conductors separated by air gaps. This variation of overhead power lines utilizes the same principles as bundled conductors, except that they are closer together to the point of touching but each conductor is surrounded by an insulating layer (except for the neutral line).



Design.

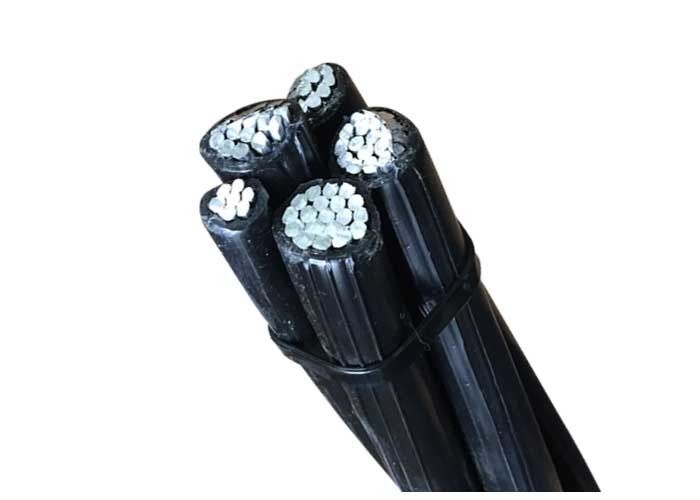

1 Aluminium conductor with increased breaking load, round stranded compressed (RM)
2 Core insulation (XPLE black, UV-resistant, not flame retardant); 2 up to 4 cores of equal cross section are stranded together in left-hand lay, additionally 1 or 2 cores of reduced cross section can be co-stranded


Application

Can be used for fixed installation as overhead power lines up to 1.000 V incl.
Not suitable for direct burial.
This over-head cable provides reinforced insulation acc. IEC 61140 and fulfill therefore Class II acc. IEC 61140 It is not flame retardant. But this could be if requested change to a flame retardant cable



Specification

(1). BS Standard ABC Cable

(2). CCC,ISO9001,ISO14001, best quality control.

(3). More than 20 years Proffessional experience, best service.

(4). We are a factory manufacturing ,Best production capability,best Price.

(5). 100% QC inspection before shippment.



Introduction

ABC Cable are overhead power lines using several insulated phase conductors bundled tightly together,

usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting.



Standard

1. B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.

2. B-231 Aluminum Conductors, Concentric-Lay-Stranded.

3. B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

4. B-399 Concentric-Lay_Stranded 6201-T81 Aluminum Alloy Conductors.

5. B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).



Applications:

TO supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting.

For service at 600 volt or lower at a conductor temperature of 75 maximum.

Quintuple Flexible Aerial Cable 0.6/1kV RM Conductor  For Overhead Power Lines 0

Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 25 35 50 70 95 120 150 185
Number of cores   3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Street lighting conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Completed cable
Approx. overall diameter mm 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 470 560 740 980 1330 1580 1940 2410
Packing length m/drum 1000 1000 1000 1000 500 500 500 500
