AAAC / AAC Conductor Aerial Bundled Cable ABC AWG Standard Round Wire

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: ISO9001, CE, CCC, VDE
Payment & Shipping Terms:
Minimum Order Quantity: 1000m
Price: 0.19-10.99USD/M
Packaging Details: Wooden Drum/ Steel Drum
Delivery Time: 15 Days
Payment Terms: L/C, T/T
Supply Ability: 1000km per Month
  • Detail Information
  • Product Description

Detail Information

Model NO.: ABC Cable Conductor Type: Stranded
Range Of Applicatio: Overhead / Underground Package: Coil / Drum
Material Shape: Round Wire
High Light:

aerial insulated cable

,

abc power cable

Product Description

AAAC/AAC Conductor PVC/PE/XLPE Insulated ABC AWG Standard Cable



Product Description

Application:

The cable as a new-type aerial cable is used for transmitting electric power overhead, extensively used in rebuilding of urban and forest region electrified wire netting. It improves the safety and reliance of electrified wire netting.



Specification:

Concentric strand aluminum wires as phase conductor; AAAC(all aluminum alloy conductors) or ACSR(aluminum conductor steel reinforced) as messenger (Neutral) core; Phase conductor is insulated by XLPE or HDPE or PVC.



Standards:

IEC60502, NF C33-209, GB 12527-90

Rated voltage: 0.6/1kV

Relative manufacturing standards: IEC61089, ASTM B231, ASTM B232, BS215, DIN48201, DIN48204.

We can also manufacture ABC cable according to customer's special requirements.

The basic construction is as follows:

3 cores consisting of standard aluminium conductors, insulated with XLPE insulation

+ One sheath lighting aluminium conductor with XLPE insulation(optional)

+ One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.





The purpose of messenger wire is

A) It acts as load bearing wire.

B) It acts as earth or neutral conductor.

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crossliked polyethylene(XLPE) insulated conductors.



It meets or exceeds the following specifications:

1. Aluminum Wire, 1350-H19 for Electrical Purposes.

2. Aluminum Conductors, Concentric-Lay-Stranded.

3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).

4. Concentric-Lay-Stranded 6201-T81 Conductors.

5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Technical Data

Rated voltage kV 0.6/1
Test voltage Veff kV 4
Laying temperature °C min. -20
Operating temperature °C -30 ~ +80
Conductor temperature °C max. +80
Short-circuit temperature °C/s max. +130 /5
Bending radius (min.)   18 × ø of cable

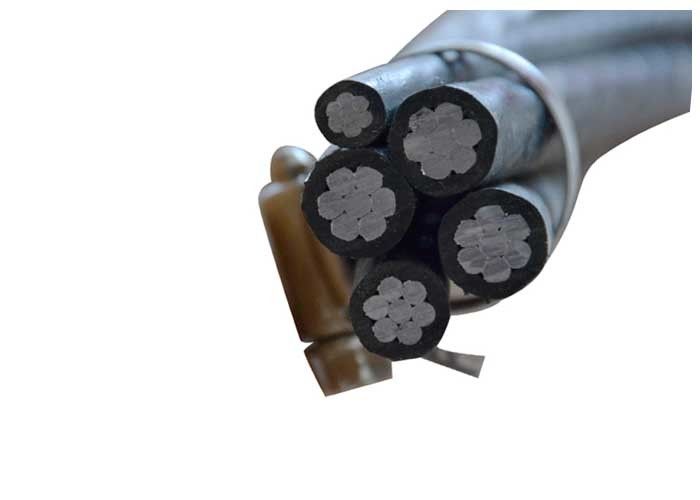

AAAC / AAC Conductor Aerial Bundled Cable ABC AWG Standard Round Wire 0
