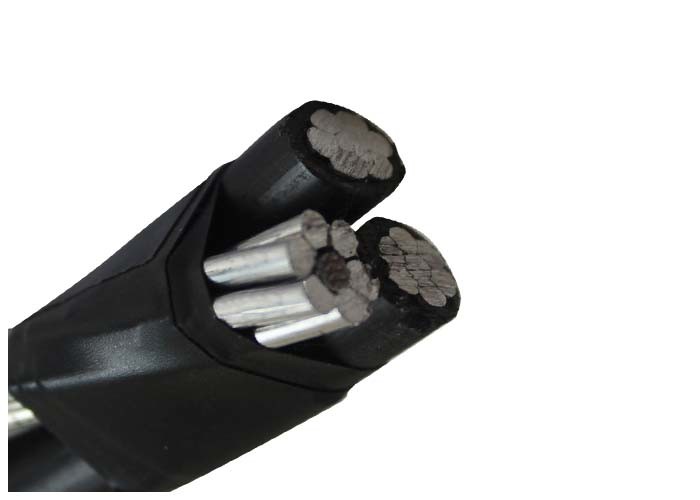

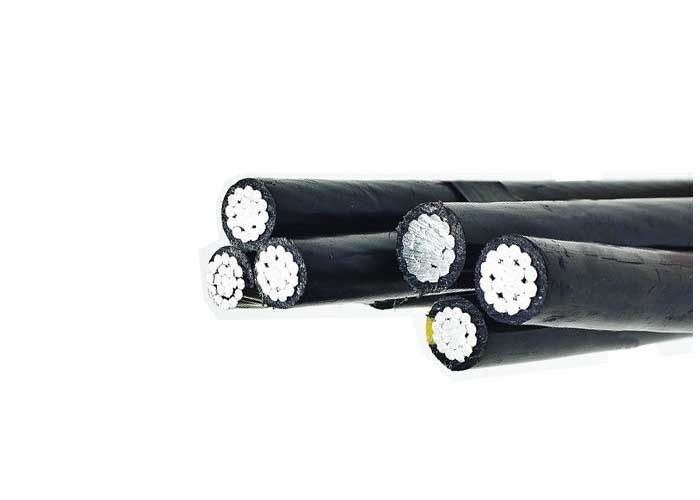

CCC 600/1000V Aerial Bundled Cable Triplex ABC for Overhead Transmission
  • name
  • name
  • name
  • name

CCC 600/1000V Aerial Bundled Cable Triplex ABC for Overhead Transmission

MOQ: 1000m
Price: 0.19-10.99USD/M
Standard Packaging: Wooden Drum/ Steel Drum
Delivery Period: 15 Days
Payment Method: L/C, T/T
Supply Capacity: 1000km per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HOLD-ONE
Certification
CE ISO ICEA SABS ASTM
Rated Voltage:
0.6/1KV
Certification:
ISO, CCC
Material Shape:
Round Wire
Current:
AC Cable
Sheath Material:
XLPE Or PE
Neutral Conductor:
2,3,4,5,6
Highlight:

aerial electrical cable

,

aerial insulated cable

Product Description

600/1000V Aerial Bundled Cable Triplex ABC Cable for Overhead Transmission



ABC Cable; Service Drop Cable

The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated with

XLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.

It meets or exceeds the following specifications:
1. Aluminum Wire, 1350-H19 for Electrical Purposes.
2. Aluminum Conductors, Concentric-Lay-Stranded.
3. Aluminum Conductor, Concentric-Lay-Stranded, Coated Steel Reinforced(ACSR)
4. Concentric-Lay-Stranded 6201-T81 Conductors
5. Compressed Round Stranded Aluminum Conductors Using Single Input Wire.

It meets or exceeds all applicable requirements of ANSI/ICEA S-76-474

Other special characterisics: design and manufacture according to customers' request

Item Description Phase conductor Approx. Overall
Diameter & Weight
NO.Stranding &
Diameter		 XLPE
Thickness		 Diameter
(mm)		 Weight
(kg/km)
1 1x10mm 2 7/1.35 1 6.15 44
2 1x16mm 2 7/1.70 1.2 7.62 68
3 1x25mm 2 7/2.22 1.2 8.72 96
4 1x35mm 2 7/2.59 1.4 10.14 134
5 1x50mm 2 7/3.10 1.4 11.24 180
6 1x70mm 2 19/2.22 1.4 12.94 242
7 1x95mm 2 19/2.59 1.4 14.54 318
8 1x120mm 2 19/2.97 1.6 16.36 403
9 1x150mm 2 37/2.33 1.8 18.38 504
10 1x185mm 2 37/2.59 2 20.4 622
11 1x240mm 2 37/2.97 2.2 23.22 802
12 1x300mm 2 37/3.36 2.4 25.64 996



CCC 600/1000V Aerial Bundled Cable Triplex ABC for Overhead Transmission 0
