Quadruplex PVC Drop Urd Power XLPE Electrical Cable Aluminum ABC Cable 75℃

Quadruplex PVC Drop Urd Power XLPE Electrical Cable Aluminum ABC Cable 75℃

  • High Light

    aerial electrical cable

    ,

    aerial insulated cable

  • Conductor
    AAC Or AAAC
  • Insulation
    PE Or PVC
  • Conductor Working Degree
    75℃
  • Rated Voltage
    0.6/1KV
  • Cors No.
    2,3,4,5
  • Application
    Overhead Power Transmission Lines
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE ISO ICEA SABS ASTM
  • Minimum Order Quantity
    1000m
  • Price
    0.19-10.99USD/M
  • Packaging Details
    Wooden Drum/ Steel Drum
  • Delivery Time
    As per schedule
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1000km per Month

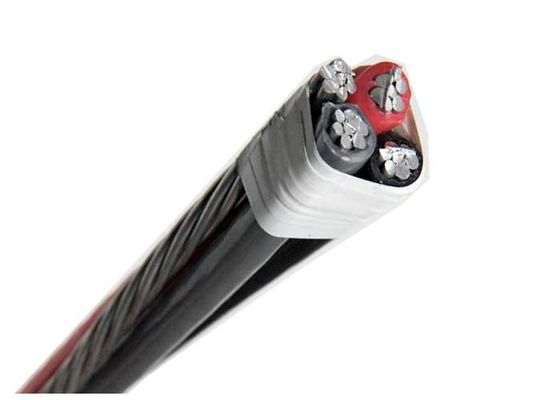

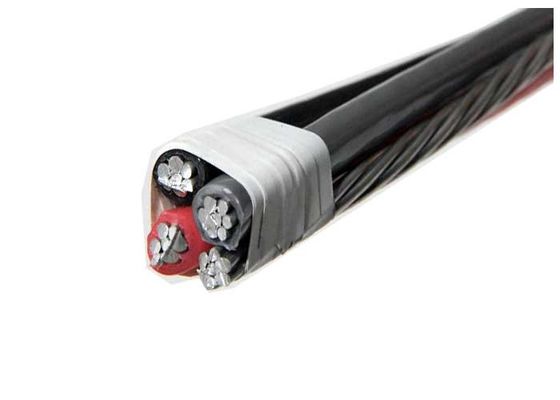

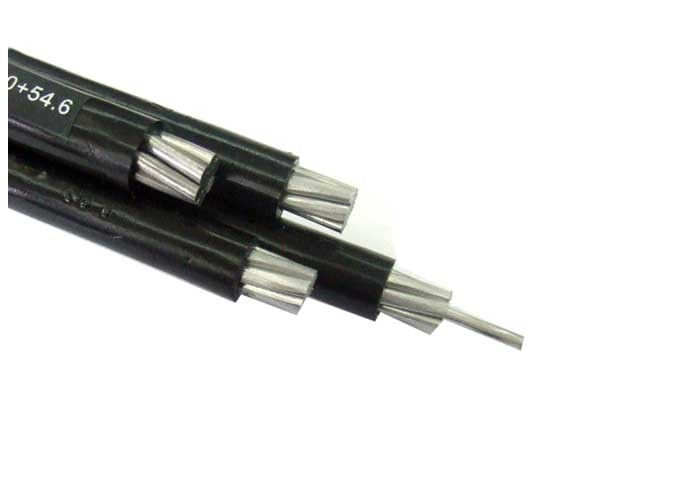

Quadruplex PVC Drop Urd Power XLPE Electrical Cable Aluminum ABC Cable 75℃

Quadruplex PVC Drop Urd Power XLPE Electric Aluminum ABC Cable


Applications
Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.

Construction
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded 6201 alloy. One conductor is manufactured with an extruded ridge for phase identification.

Standards
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
B-231 Aluminum conductors, Concentric-Lay-Stranded.
B-232 Aluminum Conductors, Concentric- Lay-Stranded, Coated Steel Reinforced (ACSR).
B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
B498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR).
Quadruplex Service Drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474.

Note :
Designated sizes are : ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTMB-399 for 6201.Conductor temperature of 90°C for XLR 75°C for Poly; ambient temperatures of 40°C; emissivity 0.9; 2ft./sec/wind in sun. To determine current ampacity by conductor size, please consult The National Electric Code, latest edition



Number of cores and cross-section Shape of conductor Conductor diameter Nominal insulation thickness Diameter over insulation Nominal thickness sheath Outer diameter (approx.) Bending radius (min.) Weight (approx.)
    (approx.)   (approx.)
mm2   mm mm mm mm mm mm kg/km
1x35/16 RM 7.2 3.4 15.3 2.5 24 360 904
1x50/16 RM 8.2 3.4 16.3 2.5 26 390 1039
1x70/16 RM 9.8 3.4 17.9 2.5 27 405 1271
1x95/16 RM 11.3 3.4 19.4 2.5 29 435 1530
1x120/16 RM 12.8 3.4 20.9 2.5 30 450 1809
1x150/25 RM 14.2 3.4 22.3 2.5 32 480 2158
1x185/25 RM 15.8 3.4 23.9 2.5 33 495 2524
1x240/25 RM 18.3 3.4 26.4 2.5 36 540 3117
1x300/25 RM 20.7 3.4 28.8 2.5 38 570 3786
1x400/35 RM 23.3 3.4 31.4 2.5 41 615 4750
1x500/35 RM 26.5 3.4 34.6 2.5 44 660 5786





Quadruplex PVC Drop Urd Power XLPE Electrical Cable Aluminum ABC Cable 75℃ 0
