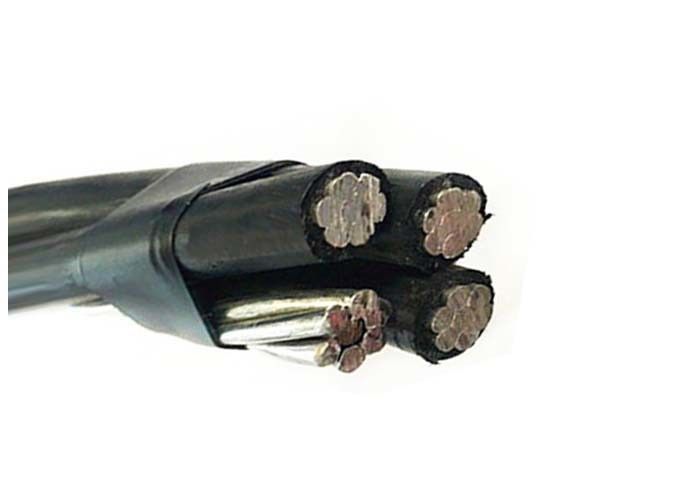

AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines
  • AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines
  • AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines
  • AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines
  • AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines
AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines

AL / XLPE Insulation Cable Aerial Bunch Cable For Overhead Distribution Lines

Place of Origin China
Brand Name HOLD-ONE
Certification CE ROHS KEMA
Product Details
Rated Voltage:
0.6/1kV
Installation Degree:
-20℃-90℃
Main Usage:
Overhead Fixed Layout And Wire Conducting
Sample:
20cm Free Of Charge
Package:
Wooden Drum
Type:
Insulated
Highlight:

aerial electrical cable

,

abc power cable

Payment & Shipping Terms
Minimum Order Quantity
1000m
Price
0.19-10.99USD/M
Packaging Details
Wooden Drum/ Steel Drum
Delivery Time
15 Days
Payment Terms
L/C,T/T
Supply Ability
500km per Month
Product Description

AL/XLPE(PE) Insulated ABC Cable 0.6/1 kV (BS 7870-5) for Overhead Distribution Lines



Description
The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase
conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.



Construction
1 Conductor:
a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.
b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded
c)Street Lighting- The street lighting conductors shall be of H68 condition aluminium conductor and compacted circular stranded..
2 Insulation:The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.



Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 25 35 50 70 95 120 150 185
Number of cores   3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Street lighting conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Completed cable
Approx. overall diameter mm 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 470 560 740 980 1330 1580 1940 2410
Packing length m/drum 1000 1000 1000 1000 500 500 500 500





Tags:

aerial electrical cable,

aerial insulated cable,

abc power cable
