Detail Information
Product Description

Detail Information
Phase Conductor:	Aluminium	Insulation:	PE Or PVC
Rated Voltage:	0.6/1KV	Application:	Overhead Power Transmission Lines
Neutral Conductor:	Aluminium Alloy	Cors No.:	2,3,4,5,6
High Light:	aerial electrical cable , aerial insulated cable

Product Description

0.6/1(1.2)kV AL/XLPE(PE) Insulated

Aerial Bundled Cables with Street Lighting Conductor

Description:3 Phase conductors + 1 Messenger conductor + 1 Street lighting conductor

The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.

Construction

Conductor:

a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.

b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded c)Street Lighting- The street lighting conductors shall be of H68 condition aluminium conductor and compacted circular stranded..

Insulation:

The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.

STANDARD TS 11654

AER

						Insulated Wires						Porter		Completed cable
		Number of		Main Distribution Line					Str. Lighting			Porter		Completed cable
		Number of		Main Distribution Line					Str. Lighting
		Conductor Cross	Number	Number of	Diameter of		Resistance	Current	Number	Current	Diameter of	Min. Tensile	Resistance	Approx.	Approximate
		Section	&Cross-	wire	Wires		at 20℃	Carrying	&Cross-	Carrying	Neutral/Mes	Strenght	at 20℃	Average	weight
			section					Capacity at	section	Capacity at	senger Wire	Limite		Diameter
								30℃		30℃
		mm²	mm²	PCS	mm		ohm/km	A	mm²	A	mm	kN	ohm/km	mm	kg/km
	1x16+25		1x16	1	4.4	1.91		75	-	-	5.9	7.4	1.380	15	140
1x25+35			1x25	7	5.9	1.20		100	-	-	6.9	10.3	0.986	17	200
	1x35+50		1x35	7	6.9	0.868		125	-	-	8.1	14.2	0.720	20	275
	3x16+25		3x16	7	4.4	1.91		70	-	-	5.9	7.4	1.380	22	275
3x25+35			3x25	7	5.9	1.20		90	-	-	6.9	10.3	0.986	26	400
3x35+50			3x35	7	6.9	0.868		115	-	-	8.1	14.2	0.720	30	575

	3x50+70		3x50	7	8.1	0.641		140	-	-	9.6	20.6	0.493	35	750
	3x70+95		3x70	7	9.6	0.443		180	-	-	11.4	27.9	0.363	41	1050
		3x120+95	3x120	19	12.8	0.253		250	-	-	11.4	27.9	0.363	47	1550
4x16+25			4x16	1	4.4	1.91		70	-	-	5.9	7.4	1.380	24	375
		4x25+35	4x25	7	5.9	0.868		90	-	-	6.9	10.3	0.986	28	550
	4x35+50		4x35	7	6.9	0.868		115	-	-	8.1	14.2	0.720	32	750
		4x50+70	4x50	7	8.1	0.641		140	-	-	9.6	20.6	0.493	38	1000
4x70+95			4x70	7	9.6	0.443		180	-	-	11.4	27.9	0.363	45	1350

	1x16+25		-	-	-	-		-	1x16	75	5.9	7.4	1.380	14	140
	1x16+1x16+25		1x16	1	4.4	1.91		70	1x16	60	5.9	7.4	1.380	15	225

	3x16+1x16+25		3x16	1	4.4	1.91		60	1x16	60	5.9	7.4	1.380	22	350
3x25+1x16+35			3x25	7	5.9	1.20		80	1x16	60	6.9	10.3	0.986	26	475
		3x35+1x16+35	3x35	7	6.9	0.868		95	1x16	60	8.1	14.2	0.720	30	625
	3x50+1x16+70		3x50	7	8.1	0.641		120	1x16	60	9.6	20.6	0.493	35	800
		3x70+1x16+95	3x70	7	9.6	0.443		150	1x16	60	11.4	27.9	0.363	41	1100
4x16+1x16+25			4x16	1	4.4	1.91		60	1x16	60	5.9	7.4	1.380	25	450
		4x25+1x16+35	4x25	7	5.9	1.20		80	1x16	60	6.9	10.3	0.986	30	610
	4x35+1x16+50		4x35	7	6.9	0.868		95	1x16	60	8.1	14.2	0.720	34	800
		4x50+1x16+70	4x50	7	8.1	0.641		120	1x16	60	9.6	20.6	0.493	40	1060
4x70+1x16+95			4x70	7	9.6	0.443		180	1x16	60	11.4	27.9	0.363	47	1420

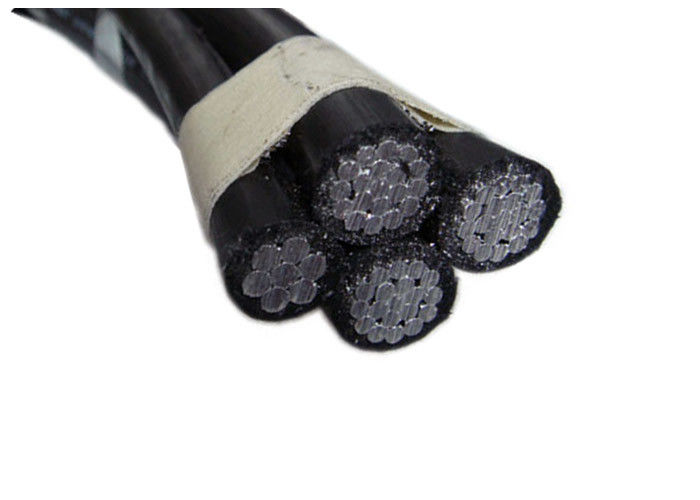

Al / Xlpe ( Pe ) Insulated Aerial Bunched Aerial Power Cable Standard Ts 11654 Aertor 0

Al / Xlpe ( Pe ) Insulated Aerial Bunched Aerial Power Cable Standard Ts 11654 Aertor 1

Tag:

Product Details:
Place of Origin:	China
Brand Name:	HOLD-ONE
Certification:	TS 11654 AER
Payment & Shipping Terms:
Minimum Order Quantity:	500m
Price:	0.19-10.99USD/m
Packaging Details:	Wooden Drum/ Steel Drum
Delivery Time:	15 Days
Payment Terms:	L/C, D/A, D/P, T/T
Supply Ability:	1000km per Month
