Electrical Insulated Aerial Bundled Cable Without Street  Lighting Conductor

Electrical Insulated Aerial Bundled Cable Without Street Lighting Conductor

  • High Light

    aerial electrical cable

    ,

    abc power cable

  • Phase Conducto
    Aluminium
  • Neutral Or Messenger
    Aluminium Alloy Conductor And Compacted Circular Stranded
  • Application
    Overhead Power Transmission Lines
  • Insulation
    XLPE Or PVC
  • Voltage
    0.6/1 KV
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ASTM B-231,B232,B399, ICEA S-76-47
  • Minimum Order Quantity
    500 m
  • Price
    0.19-10.99USD/m
  • Packaging Details
    Wooden Drum/ Steel Drum
  • Delivery Time
    15 Days
  • Payment Terms
    L/C, D/A, D/P, T/T
  • Supply Ability
    1000km per Month

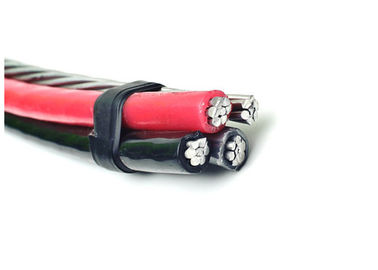

Electrical Insulated Aerial Bundled Cable Without Street Lighting Conductor

0.6/1(1.2)kV AL/XLPE(PE) Insulated


Aerial Bundled Cables without Street Lighting Conductor










Description

The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.

Construction


  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.


b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.


  1. Insulation:


The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.
Electrical Insulated Aerial Bundled Cable Without Street  Lighting Conductor 0


Schedule of technical particulars


Phase conductor
Nominal cross-sectional areamm²16162535507095120150185
Number of cores 1333333333
Minimum number of wires 666661215153030
Nominal insulation thicknessmm111.21.21.41.41.61.61.82.0
Diameter of insulated coremm6.86.88.59.511.213.015.116.618.420.6
Max. DC resistance at 20℃ohm/km1.911.911.200.8680.6410.4430.3200.2530.2060.164
Current rating at still wind, ambientA616184104129167209246283332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional areamm²252525253550707095120
Minimum number of wires 66666612121515
Nominal insulation thicknessmm1.21.21.21.21.21.41.41.41.61.6
Diameter of insulated coremm8.58.58.58.59.511.213.113.115.116.6
Max. DC resistance at 20℃ohm/km1.3121.3121.3121.3120.9430.6930.4690.4690.3490.273
Calculated breaking loadkN6.46.46.46.48.912.118.018.024.230.8
Completed cable
Approx. overall diametermm15.319.023.225.630.034.940.644.149.254.9
Approx. weight of cablekg/km1602904005006809201270151018702340
Packing lengthm/drum100010001000100010001000500500500500
