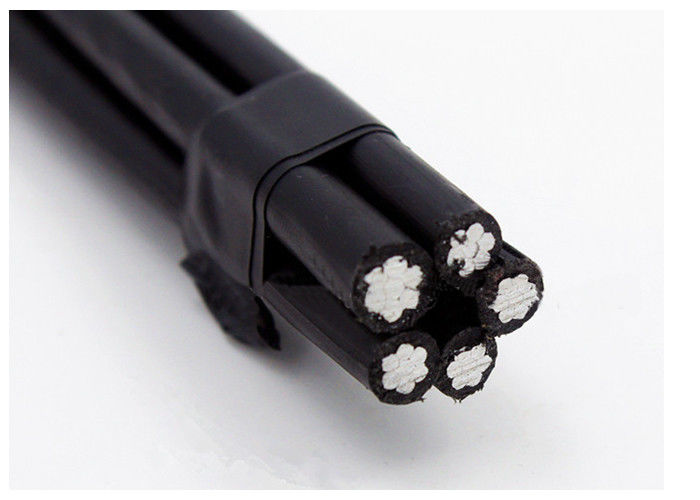

1 KV PE Insulated Aerial Bunch Cable 5 Cores With Neutral Conductor IEC 60502
1 KV PE Insulated Aerial Bunch Cable 5 Cores With Neutral Conductor IEC 60502 1 KV PE Insulated Aerial Bunch Cable 5 Cores With Neutral Conductor IEC 60502

1 KV PE Insulated Aerial Bunch Cable 5 Cores With Neutral Conductor IEC 60502

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: IEC 60502
Payment & Shipping Terms:
Minimum Order Quantity: 500m
Price: 0.10-30.99USD/m
Packaging Details: Wooden Drum or Steel Drum
Delivery Time: 10 Days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 1000km per month
Contact Now
  • Detail Information
  • Product Description

Detail Information
Phase Conductor: Aluminium Neutral Conductor: Aluminum Alloy
Insulation: PE Cores No.: 5
Rated Voltage: 0.6/1 KV Application: Aerial Electrics Transmitting
High Light:

aerial electrical cable

,

abc power cable

Product Description

PE Insulation Five Core Aerial Drop Cable STANDARD NF C 33-209 NFA 2X









Construction



  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.



b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded c)Street Lighting- The street lighting conductors shall be of H68 condition aluminium conductor and compacted circular stranded..



  1. Insulation:



The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.











Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 25 35 50 70 95 120 150 185
Number of cores   3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Street lighting conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Completed cable
Approx. overall diameter mm 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 470 560 740 980 1330 1580 1940 2410
Packing length m/drum 1000 1000 1000 1000 500 500 500 500











STANDARD NF C 33-209



NFA 2X



  Phases Neutral/Messenger
    Distribution Lines   Pub. Lighting

Cable Type Number of Number of Avarage Resistance Conductance Number of Avarage Rated Resistance
  core wire diameter at 20℃ at 30℃ core diameter Strength at 20℃

mm² mm² PCS mm ohm/km A mm² mm kN ohm/km
2x16 2x16 7 4.6 1.91 93 - - - -
2x35 2x35 7 5.9 1.20 122 - - - -

2x35 2x35 7 6.9 0.868 129 - - - -
2x50 2x50 7 8.1 0.641 158 - - - -

4x16 4x16 7 4.6 1.91 83 - - - -
4x25 4x25 7 5.9 1.20 111 - - - -

4x35 4x35 7 6.9 0.868 131 - - - -
3x25+54.6 3x25 7 5.9 1.20 112 - 9.6 16.0 0.63
3x25+1x16+54.6 3x25 7 5.9 1.20 112 1x16 9.6 16.0 0.63
3x25+2x16+54.6 3x25 7 5.9 1.20 112 2x16 9.6 16.0 0.63
3x35+54.6 3x35 7 6.9 0.868 138 - 9.6 16.0 0.63
3x35+1x16+54.6 3x35 7 6.9 0.868 138 1x16 9.6 16.0 0.63
3x35+2x16+54.6 3x35 7 6.9 0.868 138 2x16 9.6 16.0 0.63
3x50+54.6 3x50 7 8.1 0.641 168 - 9.6 16.0 0.63

3x50+1x16+54.6 3x50 7 8.1 0.641 168 1x16 9.6 16.0 0.63
3x50+2x16+54.6 3x50 7 8.1 0.641 168 2x16 9.6 16.0 0.63

3x70+54.6 3x70 12 9.7 0.443 213 - 9.6 16.0 0.63
3x70+1x16+54.6 3x70 12 9.7 0.443 213 1x16 9.6 16.0 0.63
3x70+2x16+54.6 3x70 12 9.7 0.443 213 2x16 9.6 16.0 0.63
3x70+1x25+54.6 3x70 12 9.7 0.443 213 1x25 9.6 16.0 0.63
3x70+2x25+54.6 3x70 12 9.7 0.443 213 2x25 9.6 16.0 0.50
3x70+70 3x70 12 9.7 0.443 213 - 10.2 20.6 0.50
3x70+1x16+70 3x70 12 9.7 0.443 213 1x16 10.2 20.6 0.50
3x70+2x16+70 3x70 12 9.7 0.443 213 2x16 10.2 20.6 0.50
3x95+70 3x95 12 11.5 0.320 258 - 10.2 20.6 0.50
3x95+1x16+70 3x95 12 11.5 0.320 258 1x16 10.2 20.6 0.50
3x95+2x16+70 3x95 12 11.5 0.320 258 2x16 10.2 20.6 0.50
3x120+70 3x120 12 12.8 0.253 300 - 10.2 20.6 0.50
3x120+1x16+70 3x120 19 12.8 0.253 300 1x16 10.2 20.6 0.50
3x120+2x16+70 3x120 19 12.8 0.253 300 2x16 10.2 20.6 0.50
3x150+70 3x150 19 14.5 0.206 344 - 10.2 20.6 0.50
3x150+1x16+70 3x150 19 14.5 0.206 344 1x16 10.2 20.6 0.50
3x150+2x16+70 3x150 19 14.5 0.206 344 2x16 10.2 20.6 0.50
3x120+95 3x120 19 12.8 0.253 300 - 12.9 27.9 0.343
3x120+1x16+95 3x120 19 12.8 0.253 300 1x16 12.9 27.9 0.343
3x120+2x16+95 3x120 19 12.8 0.253 300 2x16 12.9 27.9 0.343
3x150+95 3x150 19 14.5 0.206 344 - 12.9 27.9 0.343
3x150+1x16+95 3x150 19 14.5 0.206 344 1x16 12.9 27.9 0.343
3x150+2x16+95 3x150 19 14.5 0.206 344 2x16 12.9 27.9 0.343







1 KV PE Insulated Aerial Bunch Cable 5 Cores With Neutral Conductor IEC 60502 0
