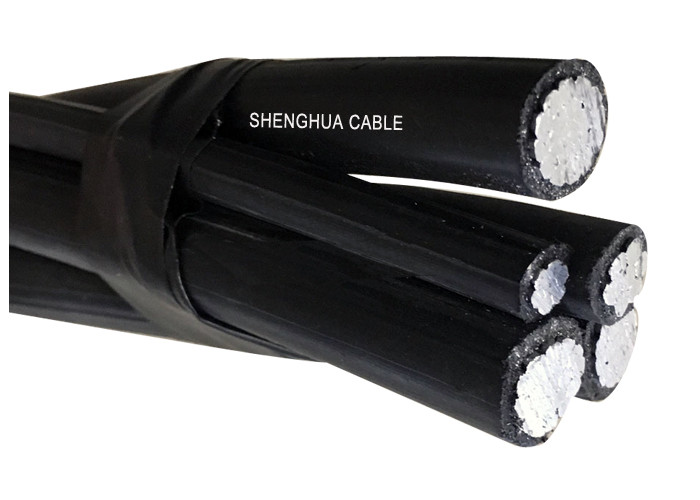

PE Insulation Five Core Aerial Drop Cable STANDARD NF C 33-209 NFA 2X

PE Insulation Five Core Aerial Drop Cable STANDARD NF C 33-209 NFA 2X

  • High Light

    aerial electrical cable

    ,

    abc power cable

  • Phase Conductor
    Aluminium
  • Neutral Conductor
    Aluminum Alloy
  • Street Lighting
    Aluminium
  • Insulation
    PE
  • Rated Voltage
    0.6/1KV
  • Application
    Overhead Power Line
  • No. Of Cores
    5
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    IEC 60502
  • Minimum Order Quantity
    0.5km
  • Price
    0.10-30.99USD/m
  • Packaging Details
    Wooden Drum or Steel Drum
  • Delivery Time
    10 ays or More
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1000km per month

PE Insulation Five Core Aerial Drop Cable STANDARD NF C 33-209 NFA 2X

PE Insulation Five Core Aerial Drop Cable STANDARD NF C 33-209 NFA 2X









Construction



  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.



b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded c)Street Lighting- The street lighting conductors shall be of H68 condition aluminium conductor and compacted circular stranded..



  1. Insulation:



The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.











Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 25 35 50 70 95 120 150 185
Number of cores   3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Street lighting conductor
Nominal cross-sectional area mm² 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Completed cable
Approx. overall diameter mm 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 470 560 740 980 1330 1580 1940 2410
Packing length m/drum 1000 1000 1000 1000 500 500 500 500











STANDARD NF C 33-209



NFA 2X



                                            Phases Neutral/Messenger
    Distribution Lines   Pub. Lighting

Cable Type Number of Number of Avarage Resistance Conductance Number of Avarage Rated Resistance
  core wire diameter at 20℃ at 30℃ core diameter Strength at 20℃

mm² mm² PCS mm ohm/km A mm² mm kN ohm/km
2x16 2x16 7 4.6 1.91 93 - - - -
2x35 2x35 7 5.9 1.20 122 - - - -

2x35 2x35 7 6.9 0.868 129 - - - -
2x50 2x50 7 8.1 0.641 158 - - - -

4x16 4x16 7 4.6 1.91 83 - - - -
4x25 4x25 7 5.9 1.20 111 - - - -

4x35 4x35 7 6.9 0.868 131 - - - -
3x25+54.6 3x25 7 5.9 1.20 112 - 9.6 16.0 0.63
3x25+1x16+54.6 3x25 7 5.9 1.20 112 1x16 9.6 16.0 0.63
3x25+2x16+54.6 3x25 7 5.9 1.20 112 2x16 9.6 16.0 0.63
3x35+54.6 3x35 7 6.9 0.868 138 - 9.6 16.0 0.63
3x35+1x16+54.6 3x35 7 6.9 0.868 138 1x16 9.6 16.0 0.63
3x35+2x16+54.6 3x35 7 6.9 0.868 138 2x16 9.6 16.0 0.63
3x50+54.6 3x50 7 8.1 0.641 168 - 9.6 16.0 0.63

3x50+1x16+54.6 3x50 7 8.1 0.641 168 1x16 9.6 16.0 0.63
3x50+2x16+54.6 3x50 7 8.1 0.641 168 2x16 9.6 16.0 0.63

3x70+54.6 3x70 12 9.7 0.443 213 - 9.6 16.0 0.63
3x70+1x16+54.6 3x70 12 9.7 0.443 213 1x16 9.6 16.0 0.63
3x70+2x16+54.6 3x70 12 9.7 0.443 213 2x16 9.6 16.0 0.63
3x70+1x25+54.6 3x70 12 9.7 0.443 213 1x25 9.6 16.0 0.63
3x70+2x25+54.6 3x70 12 9.7 0.443 213 2x25 9.6 16.0 0.50
3x70+70 3x70 12 9.7 0.443 213 - 10.2 20.6 0.50
3x70+1x16+70 3x70 12 9.7 0.443 213 1x16 10.2 20.6 0.50
3x70+2x16+70 3x70 12 9.7 0.443 213 2x16 10.2 20.6 0.50
3x95+70 3x95 12 11.5 0.320 258 - 10.2 20.6 0.50
3x95+1x16+70 3x95 12 11.5 0.320 258 1x16 10.2 20.6 0.50
3x95+2x16+70 3x95 12 11.5 0.320 258 2x16 10.2 20.6 0.50
3x120+70 3x120 12 12.8 0.253 300 - 10.2 20.6 0.50
3x120+1x16+70 3x120 19 12.8 0.253 300 1x16 10.2 20.6 0.50
3x120+2x16+70 3x120 19 12.8 0.253 300 2x16 10.2 20.6 0.50
3x150+70 3x150 19 14.5 0.206 344 - 10.2 20.6 0.50
3x150+1x16+70 3x150 19 14.5 0.206 344 1x16 10.2 20.6 0.50
3x150+2x16+70 3x150 19 14.5 0.206 344 2x16 10.2 20.6 0.50
3x120+95 3x120 19 12.8 0.253 300 - 12.9 27.9 0.343
3x120+1x16+95 3x120 19 12.8 0.253 300 1x16 12.9 27.9 0.343
3x120+2x16+95 3x120 19 12.8 0.253 300 2x16 12.9 27.9 0.343
3x150+95 3x150 19 14.5 0.206 344 - 12.9 27.9 0.343
3x150+1x16+95 3x150 19 14.5 0.206 344 1x16 12.9 27.9 0.343
3x150+2x16+95 3x150 19 14.5 0.206 344 2x16 12.9 27.9 0.343

















PE Insulation Five Core Aerial Drop Cable STANDARD NF C 33-209 NFA 2X 0























ADVANTAGE



Aluminium Conductors PVC Insulated Aerial Bundled Cables 2 Cores ABC-AL/PVC

















CERTIFICATION



Aluminium Conductors PVC Insulated Aerial Bundled Cables 2 Cores ABC-AL/PVC













FACTORY SHOW



Aluminium Conductors PVC Insulated Aerial Bundled Cables 2 Cores ABC-AL/PVC









INSPECTION PROCESS



Aluminium Conductors PVC Insulated Aerial Bundled Cables 2 Cores ABC-AL/PVC







PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
