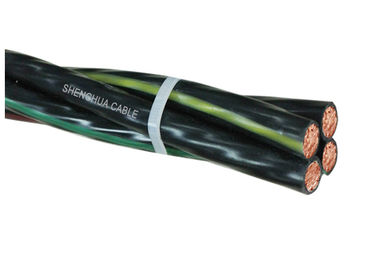

Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor

Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor

  • High Light

    aerial electrical cable

    ,

    aerial insulated cable

  • Phase Conduxtor
    Aluminium
  • Neutral Conductor
    Aluminium Alloy
  • Insulation
    XLPE
  • Rated Voltage
    0.6/1KV
  • Cores Nos
    4
  • Application
    Overhead Power Line
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    IEC 60502
  • Minimum Order Quantity
    0.5km
  • Price
    0.10-25.99USD/m
  • Packaging Details
    Wooden Drum or Steel Drum
  • Delivery Time
    10Days or more
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1000km per Month

Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor

Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor



Description



3 Phase conductors + 1 Messenger conductor



The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.



Construction



  1. Conductor:



a) Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.



b) Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.



   2. Insulation:



The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.





Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 16 16 25 35 50 70 95 120 150 185
Number of cores   1 3 3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 6.8 6.8 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.91 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 61 61 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Completed cable
Approx. overall diameter mm 15.3 19.0 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 160 290 400 500 680 920 1270 1510 1870 2340
Packing length m/drum 1000 1000 1000 1000 1000 1000 500 500 500 500















Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor 0













ADVANTAGE



Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor 1









CERTIFICATION



Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor 2









FACTORY SHOW



Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor 3









INSPECTION PROCESS



Aerial Bundled Xlpe Insulation Cable , Aerial Power Cable With 1 Messenger Conductor 4





PACKING AND SHIPPING



We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.

Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
