| MOQ: | 0.5km |
| Price: | 0.10-10.99USD/m |
| Standard Packaging: | Wooden Drum/ Steel Drum |
| Delivery Period: | 15Days or More |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 1000km per Month |

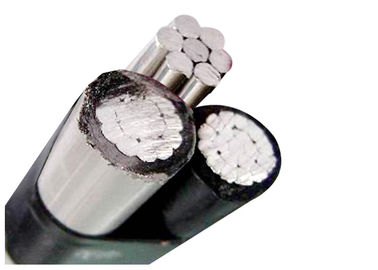

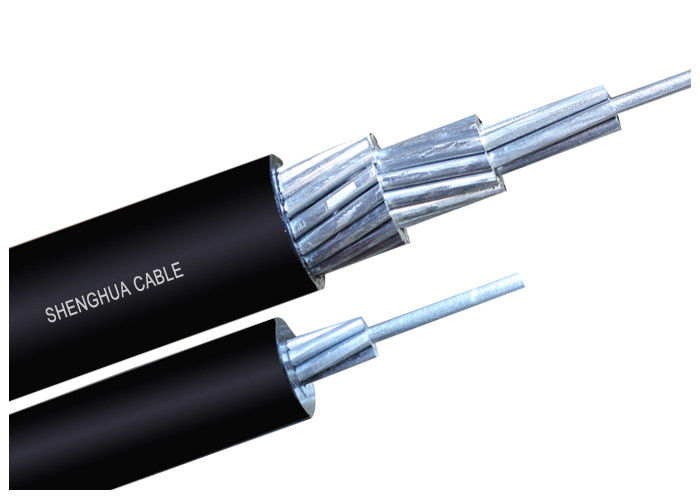

Professional Aerial Bunched Cables , Aerial Electrical Cable ABC-AAAC Triplex
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
Part of Items
| Code Name | Phase Conductors | Bare Natural | Weight | Ampacity | ||||||||
| Size & No. of | Insulation | Nominal Diamerer | Size & No. of | Rated Stength | XLPE | Aluminum | Total | |||||
| Wires | Thickness | Bare | OD | |||||||||
| mm | mm | mm | Wires | kg | kg/km | kg/km | kg/km | A | ||||
| Crayfish | 2/0-7 | 1.52 | 10.5 | 13.6 | 2-7 | 1270 | 146 | 487 | 631 | 210 | ||
| Sipho | 2/0-19 | 1.52 | 10.6 | 13.7 | 2-7 | 1270 | 147 | 487 | 634 | 210 | ||
| Dungenese | 2/0-7 | 1.52 | 10.5 | 13.6 | 2/0-7 | 2445 | 146 | 595 | 740 | 210 | ||
| Cyclops | 2/0-7 | 1.52 | 10.6 | 13.7 | 2/0-7 | 2445 | 147 | 595 | 743 | 210 | ||
| Slug | 3/0-7 | 1.52 | 11.8 | 14.8 | 1/0-7 | 2023 | 165 | 650 | 816 | 242 | ||
| Fulgur | 3/0-19 | 1.52 | 11.9 | 15.0 | 1/0-7 | 2023 | 168 | 650 | 819 | 242 | ||
| Balanus | 3/0-19 | 2.03 | 11.9 | 16.0 | 1/0-7 | 2023 | 216 | 650 | 868 | 242 | ||
| Stonecrab | 3/0-7 | 1.52 | 11.8 | 14.8 | 3/0-7 | 3080 | 165 | 752 | 917 | 242 | ||
| Flustra | 3/0-7 | 1.52 | 11.9 | 15.0 | 3/0-7 | 3080 | 168 | 752 | 920 | 242 | ||
| Crisia | 3/0-19 | 2.03 | 11.9 | 16.0 | 3/0-7 | 3080 | 216 | 752 | 969 | 242 | ||
| Squid | 4/0-7 | 1.52 | 13.3 | 16.3 | 2/0-7 | 2431 | 191 | 820 | 1011 | 279 | ||
| Arca | 4/0-19 | 1.52 | 13.4 | 16.5 | 2/0-7 | 2431 | 192 | 820 | 1012 | 279 | ||
| Bugula | 4/0-19 | 2.03 | 13.4 | 17.5 | 2/0-7 | 2431 | 246 | 820 | 1066 | 279 | ||
| Kingerab | 4/0-7 | 1.52 | 13.3 | 16.3 | 4/0-7 | 3883 | 191 | 948 | 1137 | 279 | ||
| Lepas | 4/0-19 | 1.52 | 13.4 | 16.5 | 4/0-7 | 3883 | 192 | 948 | 1140 | 279 | ||
|
|
Cassi | 4/0-19 | 2.03 | 13.4 | 17.5 | 4/0-7 | 3883 | 246 | 948 | 1194 |
279 |
|
|
|
