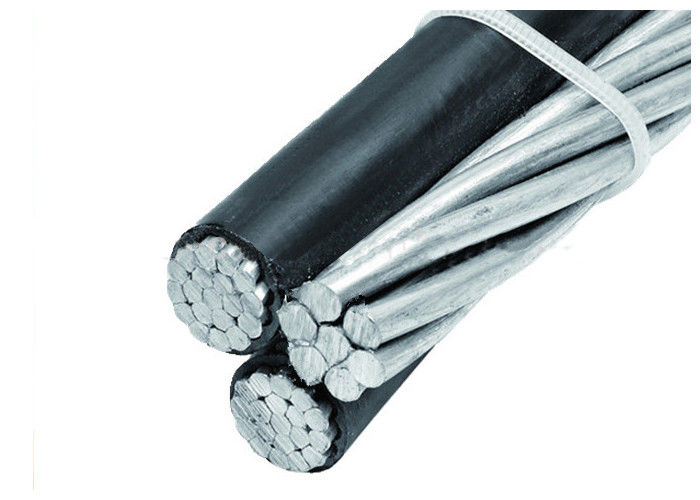

3 Core Aerial Bundled Triplex Service Drop Cable For Overhead Power Transmission Lines
1. Applications
Aerial Bunch Cables are basically a compromise construction between Power cables and Overhead conductors. ABC cables are especially used at areas where the cost of underground networks is expensive. Bundles can include one or two additional conductors for public lighting and control pair.
2. Standards
TRIPLEX SERVICE DROP-ALUMINUM CONDUCTOR
ASTM B-231,B-232 and B-399, ICEA S -76-474
| Code Name | Phase Conductors | Bare Natural | Weight | Ampacity | ||||||
| Size & No. of | Insulation | Nominal Diamerer | Size & No. of | Rated Stength | XLPE | Aluminum | Total | |||
| Wires | Thickness | Bare | OD | |||||||
| mm | mm | mm | Wires | kg | kg/km | kg/km | kg/km | A | ||
| AAC | ||||||||||
| Halotis | -Solid | 1.14 | 4.115 | 6.4 | 6-7 | 255 | 42 | 110 | 152 | 78 |
| Pike | -7 | 0.76 | 4.67 | 6.2 | 6-7 | 255 | 31 | 112 | 143 | 78 |
| Patella | -7 | 1.14 | 4.67 | 7.0 | 6-7 | 255 | 48 | 112 | 159 | 78 |
| Albus | -7 | 1.52 | 4.67 | 7.7 | 6-7 | 255 | 64 | 132 | 198 | 78 |
| Fusus | -Solid | 1.14 | 5.182 | 7.5 | 4-7 | 400 | 52 | 177 | 229 | 103 |
| Oyster | -7 | 1.14 | 5.89 | 8.2 | 4-7 | 400 | 60 | 177 | 237 | 103 |
| Argo | -7 | 1.52 | 5.89 | 8.9 | 4-7 | 400 | 80 | 177 | 258 | 103 |
| Clam | 2-7 | 1.14 | 7.42 | 9.7 | 2-7 | 612 | 76 | 281 | 359 | 136 |
| Thia | -7 | 1.52 | 7.42 | 10.5 | 2-7 | 612 | 100 | 281 | 383 | 136 |
| Mussel | -7 | 1.14 | 7.42 | 9.7 | 2-7 | 612 | 76 | 281 | 359 | 136 |
| Pyrula | -7 | 1.52 | 8.33 | 11.4 | 1-7 | 744 | 116 | 356 | 467 | 158 |
| Hyas | -19 | 1.52 | 8.43 | 11.5 | 1-7 | 744 | 115 | 356 | 469 | 158 |
| Murex | 1/0-7 | 1.52 | 9.35 | 12.4 | 1/0-7 | 903 | 128 | 385 | 513 | 182 |
| Purpura | 1/0-19 | 1.52 | 9.47 | 12.5 | 1/0-7 | 903 | 130 | 385 | 515 | 182 |
| Nasa | 2/0-7 | 1.52 | 10.52 | 13.6 | 2/0-7 | 1139 | 146 | 566 | 710 | 210 |
| Trophon | 2/0-19 | 1.52 | 10.64 | 13.7 | 2/0-7 | 1139 | 147 | 566 | 713 | 210 |
| Quahog | 3/0-7 | 2.03 | 11.79 | 15.9 | 3/0-7 | 1379 | 214 | 713 | 926 | 242 |
| Lone | 3/0-19 | 2.03 | 11.94 | 16.0 | 3/0-7 | 1379 | 217 | 713 | 929 | 242 |
| Melita | 3/0-19 | 1.52 | 11.94 | 15.0 | 3/0-19 | 1501 | 168 | 713 | 881 | 242 |
| Coquina | 4/0-7 | 1.52 | 13.26 | 16.3 | 4/0-7 | 1737 | 191 | 899 | 1089 | 279 |
| Tusk | 4/0-7 | 2.03 | 13.26 | 17.3 | 4/0-7 | 1737 | 243 | 899 | 1141 | 279 |
| Apus | 4/0-19 | 2.03 | 13.41 | 17.5 | 4/0-7 | 1737 | 246 | 899 | 1144 | 279 |
| Portunus | 4/0-19 | 1.52 | 13.41 | 16.5 | 4/0-19 | 1823 | 194 | 899 | 1091 | 279 |
| Chiton | 266.8-19 | 2.03 | 14.88 | 18.9 | 266.8-19 | 2254 | 277 | 1133 | 1409 | 310 |
| Nannynose | 336.4-19 | 2.03 | 16.92 | 21.0 | 336.4-19 | 2790 | 321 | 1427 | 1749 | 330 |
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.
