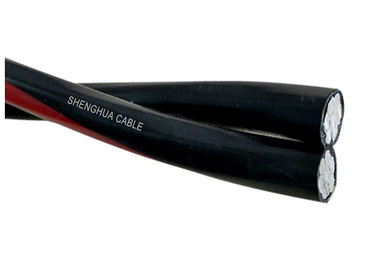

Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors
  • name
  • name
  • name
  • name

Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors

MOQ: 0.5km
Price: 0.19-10.99USD/m
Standard Packaging: Wooden Drum/ Steel Drum
Delivery Period: 15Days or More
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000km per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HOLD-ONE
Certification
ASTM B-231,B232,B399, ICEA S-76-474
Phase Conductors:
Aluminium
Insulation:
XLPE Or PVC Or PE
Cores Nos:
2
Rated Voltage:
0.6/1 KV Or 10KV
Application:
Overhead Power Transmission Lines
Neutral Conductor:
Aluminium Alloy
Model:
ABC-0.6/1KV-AL/PE Insulated
Highlight:

aerial insulated cable

,

abc power cable

Product Description

Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors





Description



The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.



Construction



  1. Conductor:



a)Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.



b)Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.



  1. Insulation:



The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.





Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 16 16 25 35 50 70 95 120 150 185
Number of cores   1 3 3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 6.8 6.8 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.91 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 61 61 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Completed cable
Approx. overall diameter mm 15.3 19.0 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 160 290 400 500 680 920 1270 1510 1870 2340
Packing length m/drum 1000 1000 1000 1000 1000 1000 500 500 500 500















Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors 0





1. ASTM, BS, NFC, IEC, DIN Standard
2. Strong tensile strength (AAAC) which is better than steel;
3. Rated Voltage: 0.6/1KV or 10 kV

4. Used for Overhead Power Transmission Lines;














Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors 1















GB12527-91,IEC502, BS7870-5

Other Tech Standards such as BS,DIN and ICEA upon request.

Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors 2







Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors 3

















Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors 4











Custom Aerial Bundled Cable , PE Insulated Cable Aluminium Alloy Conductors 5
