Duplex Cores Aerial Bundled ABC Cable ACSR Conductor For Overhead Power System

Product Details:
Place of Origin: China
Brand Name: HOLD-ONE
Certification: ASTM B-231,B232,B399, ICEA S-76-474
Payment & Shipping Terms:
Minimum Order Quantity: 0.5km
Price: 0.19-10.99
Packaging Details: Wooden Drum/ Steel Drum
Delivery Time: 10Days or More
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000km per Month
  • Detail Information
  • Product Description

Detail Information

Phase Conductor: Aluminium Insulation: XLPE Or PVC Ore PE
Rated Voltage: 0.6/1 KV Cores Nos: 2
Neutral Conductor: Aluminium Alloy Application: Overhead Power System
Model: ABC-0.6/1KV-ACSR/XLPE
High Light:

aerial electrical cable

,

abc power cable

Product Description

Duplex Cores Aerial Bundled ABC Cable ACSR Conductor For Overhead Power System



Description



The aerial Bundled cables designed for overhead distribution lines have an insulated neutral messenger made of AAAC, which the insulated aluminium phase conductor are helically wound over it. Cables are rated at 0.6/1(1.2)kV and conform to IEC60502.



Construction



  1. Conductor:



a) Phase - The phase conductor shall be of H68 Condition aluminium conductor and compacted circular stranded.



b) Neutral or messenger - The Neutral or messenger conductor shall be of aluminium alloy conductor and compacted circular stranded.



  1. Insulation:



The phase, neutral conductors shall be extruded with polyethylene(PE) as insulation.

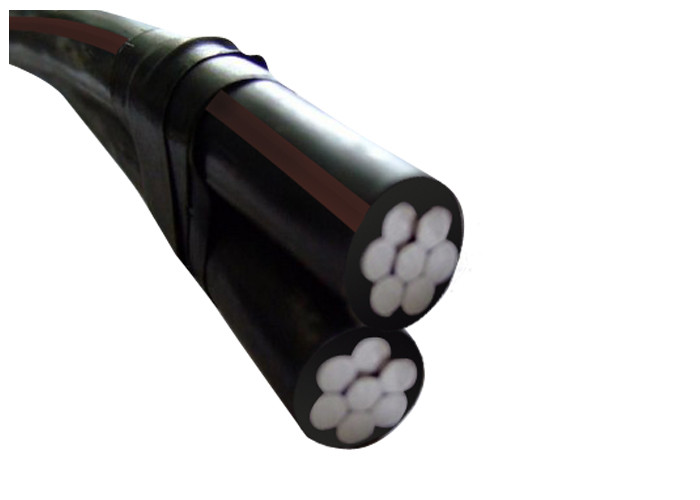

Duplex Cores Aerial Bundled ABC Cable ACSR Conductor For Overhead Power System 0







1 Phase conductor + 1 Messenger conductor







Duplex Cores Aerial Bundled ABC Cable ACSR Conductor For Overhead Power System 1









Schedule of technical particulars



Phase conductor
Nominal cross-sectional area mm² 16 16 25 35 50 70 95 120 150 185
Number of cores   1 3 3 3 3 3 3 3 3 3
Minimum number of wires   6 6 6 6 6 12 15 15 30 30
Nominal insulation thickness mm 1 1 1.2 1.2 1.4 1.4 1.6 1.6 1.8 2.0
Diameter of insulated core mm 6.8 6.8 8.5 9.5 11.2 13.0 15.1 16.6 18.4 20.6
Max. DC resistance at 20℃ ohm/km 1.91 1.91 1.20 0.868 0.641 0.443 0.320 0.253 0.206 0.164
Current rating at still wind, ambient A 61 61 84 104 129 167 209 246 283 332
temperature=30℃
Conductor temperature=75℃
Messenger conductor
Nominal cross-sectional area mm² 25 25 25 25 35 50 70 70 95 120
Minimum number of wires   6 6 6 6 6 6 12 12 15 15
Nominal insulation thickness mm 1.2 1.2 1.2 1.2 1.2 1.4 1.4 1.4 1.6 1.6
Diameter of insulated core mm 8.5 8.5 8.5 8.5 9.5 11.2 13.1 13.1 15.1 16.6
Max. DC resistance at 20℃ ohm/km 1.312 1.312 1.312 1.312 0.943 0.693 0.469 0.469 0.349 0.273
Calculated breaking load kN 6.4 6.4 6.4 6.4 8.9 12.1 18.0 18.0 24.2 30.8
Completed cable
Approx. overall diameter mm 15.3 19.0 23.2 25.6 30.0 34.9 40.6 44.1 49.2 54.9
Approx. weight of cable kg/km 160 290 400 500 680 920 1270 1510 1870 2340























Duplex Cores Aerial Bundled ABC Cable ACSR Conductor For Overhead Power System 2













GB12527-91,IEC502, BS7870-5

Other Tech Standards such as BS,DIN and ICEA upon request.
