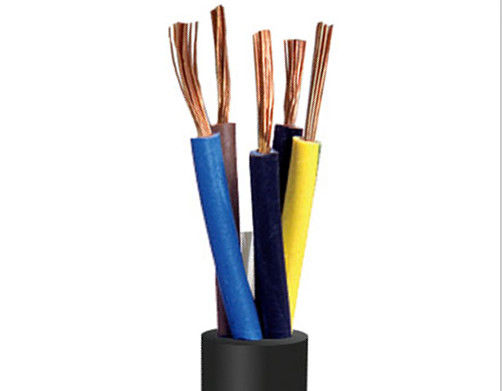

Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication
  • name
  • name
  • name
  • name
  • name

Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication

MOQ: 500
Price: USD1.5-200
Standard Packaging: Wooden drum
Delivery Period: 12 working days
Supply Capacity: 30000/month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE KEMA
Insulation:
Rubber
Jacket:
Rubber
Type:
Low Voltage
Cable Size:
0.3-400mm2
Conductor Material:
Copper
Application:
Outdoor
Highlight:

trs flexible cable

,

rubber sheathed cable

Product Description

Rubber Sheathed Cable for communication(GB/T5013-2008,JB8735-1998)

1 Application

This product is suitable for rated ac voltage 450/750v or below domestic appliaces,power-operated tools and various portable electric equipments.



2 Operation character



1) 60245IEC53(YZ),60245IEC57(YZW), model rated voltage Uo/U is 300/500V, 60245IEC66(YCW),YC rated voltage Uo/U is 450/750V.



2)Long time allow working temperature of wire core is not more than 65℃.



3)W model cable has the property of durability and suitable for cutdoor touching of greasy dirt.



4)ZR model cable has the property of fire-resistance.



3 Model name and usage

Model No. Product Name Applications
YQ,YQW Light model rubber sheath flexible cable Used for light portable electric equipment and tools
YZ, YZW Middle model rubber sheath flexible cable Used for various portable electric equipment and tools
YC. YCW Heavy model rubber sheath flexible cable Used for various portable electric equipment which can bear large mechanical force effect





Certificates

CE, RoHS, CCC, KEMA and more others at request



4 Size, weight and technological date



300/300V YQ/YQW light model

Cross-Sectional
Area mm2		 Number diameter of core Overall Diameter Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
2x0.3 16/0.15 4.3 5.8 69.2 71.2 30 31.5
2x0.5 28/0.15 4.8 6.4 39 40.1 43 45.5
3x0.3 16/0.15 4.6 6.1 69.2 71.2 36 38.5
3x0.5 28/0.15 5.1 6.7 39 40.1 74 77






300/500V YZ/YZW medium model

Cross-Sectional
Area mm2		 Number diameter of core Overall Diameter Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max Copper Tinned-Copper YZ YZW
2x0.75 24/0.2 5.7 7.4 26 26.7 81.7 89.6
2x1 32/0.2 6.1 8 19.7 20 123 138
2x1.5 16/0.25 7.6 9.8 13.3 13.7 185 196
2x2.5 28/0.25 9 11.6 7.98 8.21 234 252
2x4 56/0.3 10.6 13.7 4.95 5.09 255 276
2x6 84/0.3 11.8 15.1 3.3 3.39 356 371
3x0.75 24/0.2 6.2 8.1 26 26.7 97.4 105
3x1 32/0.2 6.5 8.5 19.7 20 112 126
3x1.5 16/0.25 8 10.4 13.3 13.7 156 174
3x2.5 28/0.25 9.6 12.4 7.98 8.21 204 2019
3x4 56/0.3 11.3 14.5 4.95 5.09 285 302
3x6 84/0.3 12.6 16.1 3.3 3.39 398 423
4x0.75 24/0.2 6.8 8.8 26 26.7 117 125
4x1 32/0.2 7.1 9.3 19.7 20 134 148
4x1.5 16/0.25 9 11.6 13.3 13.7 186 206
4x2.5 28/0.25 10.7 13.8 7.98 8.21 255 270
4x4 56/0.3 12.7 13.8 4.95 5.09 356 374
4x6 84/0.3 14 17.9 3.3 3.39 465 482





Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 0Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 1Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 2Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 3Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 4Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 5

Oil Resistant Weather Resistant W Model Rubber Sheathed Cable For Communication 6
