Black Heavy Rubber sheathed Cable EPR Insulated CPE Fire Resistant
  • name
  • name
  • name
  • name

Black Heavy Rubber sheathed Cable EPR Insulated CPE Fire Resistant

MOQ: 500m
Standard Packaging: wooden drum
Delivery Period: 7-10 days
Payment Method: L/C, T/T
Supply Capacity: 6542000m/week
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
KEMA/CE/TUV/ISO/RoSH
Insulation:
EPR
Jacket:
CPE
Conductor:
Flexible Copper (claass5)
Standard:
60245IEC66
Conductor Temp:
65 Degree
Cable Size:
From 0.75mm2 To 300mm2
Highlight:

trs flexible cable

,

rubber insulated wire

Product Description

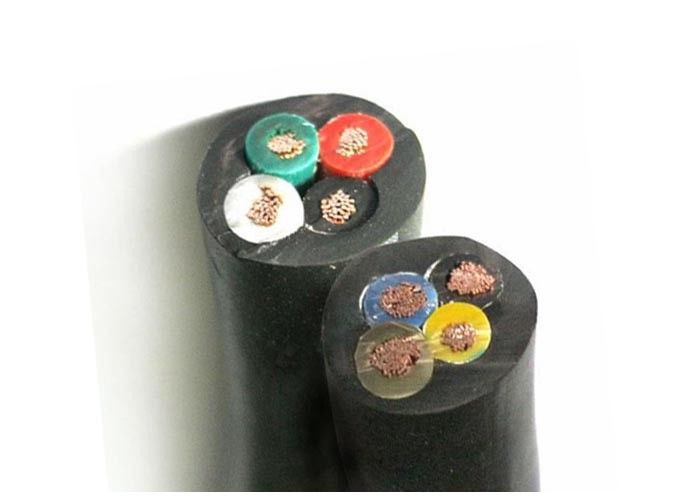

Black Heavy Rubber sheathed Cable EPR Insulated CPE Fire Resistant

Construction:

Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath


Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment

Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow


Voltage Class:300/500V
Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor
Standard: CCC is according with IEC60245-4 standard
CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE
Conductor Material: Stranded flexible fine twisted copper wire
Insulation Structure:Rubber or EPR
Core Wire Type: Centralized accordant
Sheath Material:Rubber or Neoprene
Application: This middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools

Package: Soft packing of a knitted woven cloth, carton, wooden plate or iron plate

Cross-Sectional
Area mm2		Number diameter of coreOverall DiameterMax.D.C resistance
of at 20℃
MΩ/km		Approx Weight
(kg/km)
minmax
2x0.316/0.154.35.869.271.23031.5
2x0.528/0.154.86.43940.14345.5
3x0.316/0.154.66.169.271.23638.5
3x0.528/0.155.16.73940.17477


Black Heavy Rubber sheathed Cable EPR Insulated CPE Fire Resistant 0
