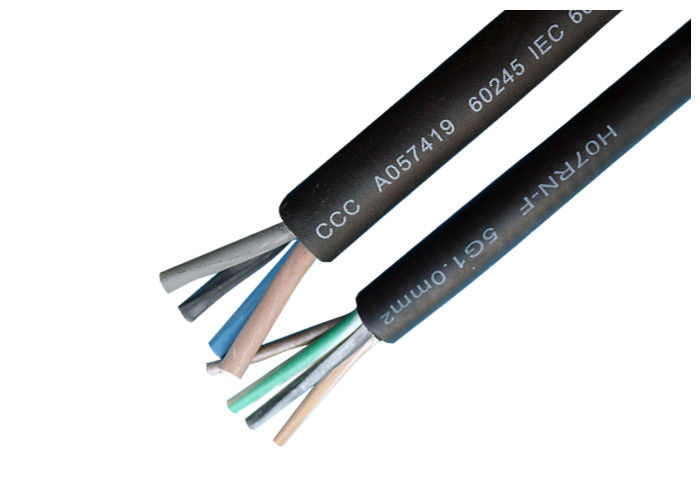

Flexible Conductor Rubber Sheathed Cable Rubber Insulated Cable H05RN-F
  • name
  • name
  • name

Flexible Conductor Rubber Sheathed Cable Rubber Insulated Cable H05RN-F

MOQ: 1000m
Price: USD 0.4 To 10.5 per Meter
Standard Packaging: Wooden Case
Delivery Period: 10-15 Days
Supply Capacity: 8KM per Day
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
CE/KEMA/CCC/CE
Voltage:
300/300V
Size:
0.3mm2 Or 0.5mm2
Conducotor:
Flexible Copper
Insualtion:
Rubber
Sheathed:
Rubber
Place Of Origin:
Shanghai
Highlight:

trs flexible cable

,

rubber insulated wire

Product Description

Flexible Conducotor Rubber Sheathed , Rubber Insulated Cable H05RN-F

Construction:



Conductor: Flexible Class 5 Copper Conductor

Insualtion: Rubber Sheath

Sheath: Rubber Sheath





Application :


This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment



Insulation Color:


Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow



Sheath Color:


Black



Working temperature



H07RN-F model rated voltage U0/U IS 450/750V

H05RN-F model rated voltage U0/U IS 300/500V

H03RN-F model rated voltage U0/U IS 300/500V



Long time allow working temperature of wire core cant be higher than 60



Rubber copper wire Working Conditions



1. Rated voltage :300/300(h03rn-f type),300/500(h05rn-f type),450/750V(h07rn-f type)

2. The long-term working temperature of conductor should be no longer than 65°C

3. W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.

4. ZR type cables have fire-retardant character.

Characteristics

1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.

2. Maximum permitted operating temperature of conductor is 60°C.

3. Permitted lowest working temperature is -35°C.

4. Cables can be used at places contaminated by mineral oil and fuel oil.




Cross-Sectional
Area mm2		 Number diameter of core Overall Diameter Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
2x0.3 16/0.15 4.3 5.8 69.2 71.2 30 31.5
2x0.5 28/0.15 4.8 6.4 39 40.1 43 45.5
3x0.3 16/0.15 4.6 6.1 69.2 71.2 36 38.5
3x0.5 28/0.15 5.1 6.7 39 40.1 74 77





Flexible Conductor Rubber Sheathed Cable Rubber Insulated Cable H05RN-F 0
