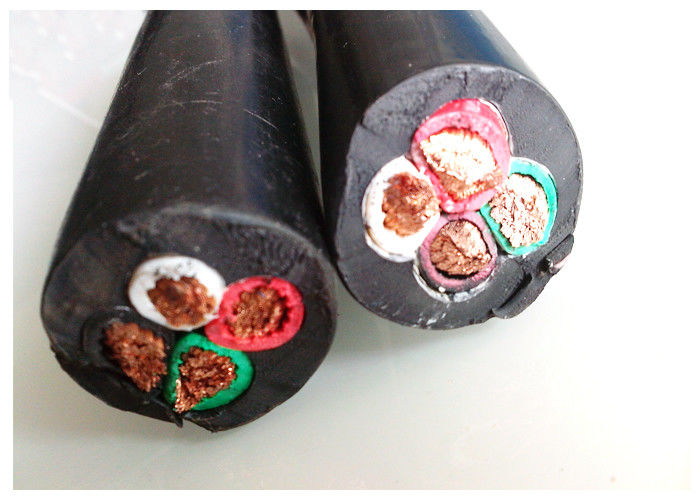

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Construction:
Conductor: Flexible Class 5 Copper Conductor
Insualtion: Rubber Sheath
Sheath: Rubber Sheath
Application :
This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment
Insulation Color:
Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow
Voltage Class:300/500V
Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor
Standard: CCC is according with IEC60245-4 standard
CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE
Conductor Material: Stranded flexible fine twisted copper wire
Insulation Structure:Rubber or EPR
Core Wire Type: Centralized accordant
Sheath Material:Rubber or Neoprene
Application: This middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools
Package: Soft packing of a knitted woven cloth, carton, wooden plate or iron plate
Cross-Sectional
Area mm2 |
Number diameter of core |
Overall Diameter |
Max.D.C resistance
of at 20℃
MΩ/km |
Approx Weight
(kg/km) |
| min |
max |
| 2x0.3 |
16/0.15 |
4.3 |
5.8 |
69.2 |
71.2 |
30 |
31.5 |
| 2x0.5 |
28/0.15 |
4.8 |
6.4 |
39 |
40.1 |
43 |
45.5 |
| 3x0.3 |
16/0.15 |
4.6 |
6.1 |
69.2 |
71.2 |
36 |
38.5 |
| 3x0.5 |
28/0.15 |
5.1 |
6.7 |
39 |
40.1 |
74 |
77 |
