Silicon Insulation Rubber Flexible Cable Silicon Sheathed Tinned Copper Wire

Silicon Insulation Rubber Flexible Cable Silicon Sheathed Tinned Copper Wire

Products - Rubber Flexible Cable
  • High Light

    trs flexible cable

    ,

    rubber sheathed cable

  • Voltage
    0.66/1.14
  • Feature
    Monitoring Core
  • Conducotor
    Flexible Copper
  • Insualtion
    Silicon
  • Sheathed
    Silicon
  • Good
    Withstand High Voltage
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    500m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    Steel Wooden Drum
  • Delivery Time
    10-15 Days
  • Supply Ability
    5KM per Day

Silicon Insulation Rubber Flexible Cable Silicon Sheathed Tinned Copper Wire

  • Silicon Insulation Rubber Flexible Cable Silicon Sheathed Tinned Copper Wire
  • Silicon Insulation Rubber Flexible Cable Silicon Sheathed Tinned Copper Wire
Get Price Contact Now

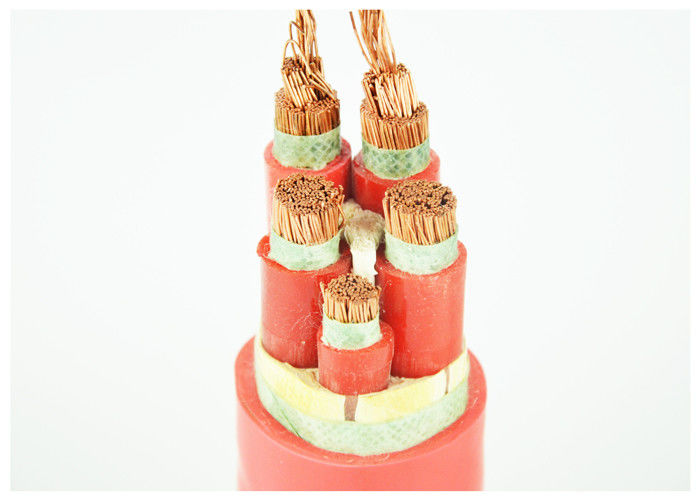

Silicon Insulation Silicon Sheathed Tinned Copper Wire Brain Cable



The silicon rubber insulated and sheathed power cable takes advantages of extruded tubing technique which improves many properties of our product, such as reliability, water proof property, resistance to acid, alkali, aging, radiance, corrosive gas as well as low temperature, etc. Meanwhile, it also offers stable performance under high temperature, and it is widely applied for harsh environment.


Insulated cable



1. Our products are good conductor and can bare high temperature.

2. There are different sizes and colors offering.

3. These products can use in different kinds of electronic components.

4. We can also offer the sizes what you need.

5. high voltage

6. guage: 8AWG-30AWG

7. material: silicone rubber



Specifications



Nominal Section-Area of Conductor(mm2) Structure of Conductor Nominal Thik-ness of Sheath (mm) Overall Diameter Max. Conductor Resistance at 20º C (Ω /km) Approx. Weight (kg/km)
Core no. /Dia. (no. /mm) Min. Max. YH YHF
10 322/0.20 1.8 7.5 9.7 1.91 146 153.51
16 513/0.20 2 9.2 11.5 1.16 218.9 230.44
25 798/0.20 2 10.5 13 0.758 316.6 331.15
35 1121/0.20 2 11.5 14.5 0.536 426 439.87
50 1596/0.20 2.2 13.5 17 0.379 592.47 610.55
70 2214/0.20 2.4 15 19.5 0.268 790 817.52
95 2997/0.20 2.6 17 22 0.198 1066.17 1102.97
120 1702/0.30 2.8 19 24 0.161 1348.25 1392.55
150 2135/0.30 3 21 27 0.128 1648.5 1698.72
185 1443/0.40 3.2 22 29 0.106 1983.8 2020.74










Technical Parameters for Low Voltage Multi-Core Silicone Rubber Insulated Electric Power Cable
1. Rated voltage U0/U: 0.6/1kV Multi-Core Silicone Rubber Insulated Power Cable
2. Max. working temperature: 180℃
3. Min. ambient temperature for working: -60℃ for fixed laying
4. Min. ambient temperature for laying: -25℃
5. Min. bending radius: 10 times of the overall diamete



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
