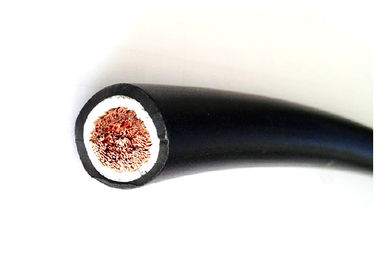

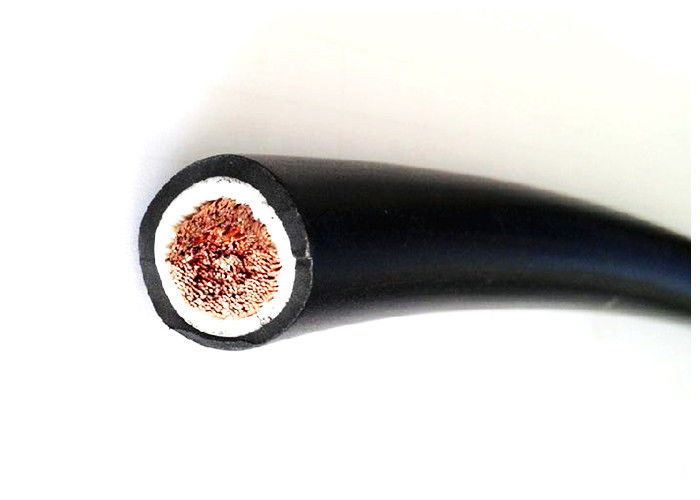

Soft Syntheitic Rubber Sheathed Cable Durable Anti Oil For Welding Machine
Applications of CE certified welding cable
Welding Cables are flame retardant, oil resistant, resilient, resists compression cuts and abrasion, durable, and survives rough handling. Designed for use as arc welding leads from the secondary side of the power source, typical of welders and welding generators. welding machine with a secondary side
connected toground and welding clamp used.
Implemented standard
Welding cable implement GB5013.6/IEC60245-6
Product Description of CE certified welding cable
1) Nominal area: 10~185mm2
2) Conductor: class 5 tinned or plain copper wire
3) No. of cores: 1
4) Insulation: rubber compound, PCP
5) The products available include:
60245IEC 81: rubber sheathed arc welding electrode cable
60245IEC 82: polychloroprene or other equivalent synthetic elastomer sheathed arc welding electrode cable
| Welding cable struction | |||||
| Conductor section:10-185mm2 Rated voltage:100/100V | |||||
| Line core number and conductor nominal section | Norminal thinkness of insulation/sheath(mm) | Overall Diameter (mm) | At 20 DC Resistance of conductor (Ω/km) | ||
| Min | Max | Tinned conductor | Non-tinned conductor | ||
| mm | mm | ||||
| 1x10 | 2 | 7.7 | 9.7 | 1.95 | 1.91 |
| 1x16 | 2 | 8.8 | 11 | 1.24 | 1.21 |
| 1x25 | 2 | 10.1 | 12.7 | 0.795 | 0.78 |
| 1x35 | 2 | 11.4 | 14.2 | 0.565 | 0.554 |
| 1x50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 |
| 1x70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 |
| 1x95 | 2.6 | 17.1 | 21.4 | 0.21 | 0.206 |
| 1x120 | 2.8 | 19.2 | 24 | 0.164 | 0.161 |
| 1x150 | 3 | 21.1 | 26.4 | 0.132 | 0.129 |
| 1x185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 |
Features of CE certified welding cable
1. Soft Cables, having good bending properties
2. The sheath material made of natural rubber or chloroprene rubber mixture,
can be applied to different situations, good electrical physical properties
3. Chloroprene rubber mixture with heat oil and retardant performance
4. The maximum continuous operating temperature of the cable is 65 ℃
5. Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
6.CE certificate APPROVED
