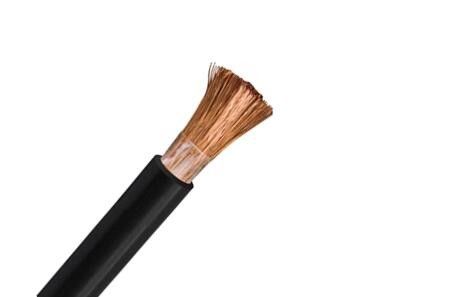

Low Voltage Natural Rubber Welding Cable , Flame Retardant Cable Oil Resistant
Features of CE certified welding cable
1. Soft Cables, having good bending properties
2. The sheath material made of natural rubber or chloroprene rubber mixture,
can be applied to different situations, good electrical physical properties
3. Chloroprene rubber mixture with heat oil and retardant performance
4. The maximum continuous operating temperature of the cable is 65 ℃
5. Color:Black, Orange, Red or Yellow Blue jacket, single & double insulated.
6. CE certificate APPROVED
Applications of CE certified welding cable
Welding Cables are flame retardant, oil resistant, resilient, resists compression cuts and abrasion, durable, and survives rough handling. Designed for use as arc welding leads from the secondary side of the power source, typical of welders and welding generators. welding machine with a secondary side
connected toground and welding clamp used.
| Welding cable struction | |||||
| Conductor section:10-185mm2 Rated voltage:100/100V | |||||
| Line core number and conductor nominal section | Norminal thinkness of insulation/sheath(mm) | Overall Diameter (mm) | At 20 DC Resistance of conductor (Ω/km) | ||
| Min | Max | Tinned conductor | Non-tinned conductor | ||
| mm | mm | ||||
| 1x10 | 2 | 7.7 | 9.7 | 1.95 | 1.91 |
| 1x16 | 2 | 8.8 | 11 | 1.24 | 1.21 |
| 1x25 | 2 | 10.1 | 12.7 | 0.795 | 0.78 |
| 1x35 | 2 | 11.4 | 14.2 | 0.565 | 0.554 |
| 1x50 | 2.2 | 13.2 | 16.5 | 0.393 | 0.386 |
| 1x70 | 2.4 | 15.3 | 19.2 | 0.277 | 0.272 |
| 1x95 | 2.6 | 17.1 | 21.4 | 0.21 | 0.206 |
| 1x120 | 2.8 | 19.2 | 24 | 0.164 | 0.161 |
| 1x150 | 3 | 21.1 | 26.4 | 0.132 | 0.129 |
| 1x185 | 3.2 | 23.1 | 28.9 | 0.108 | 0.106 |
