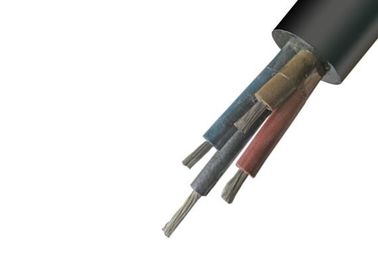

Professional TRS Flexible Cable Copper Conducotor 16mm2 - 185mm2 Phase

Professional TRS Flexible Cable Copper Conducotor 16mm2 - 185mm2 Phase

  • High Light

    trs flexible cable

    ,

    rubber insulated wire

  • Voltage
    0.66/1.14
  • Phase
    16mm2 To 185mm2
  • Conducotor
    Flexible Copper
  • Insualtion
    Rubber
  • Sheathed
    Low Smoke Low Halogen
  • Screnn
    Brain Copper Wire
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    500m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    Steel Wooden Drum
  • Delivery Time
    10-15 Days
  • Supply Ability
    5KM per Day

Professional TRS Flexible Cable Copper Conducotor 16mm2 - 185mm2 Phase

Professional Copper Conducotor Rubber Sheathed Cable 16mm2 - 185mm2 Phase



Construction:



Conductor: Flexible Class 5 Copper Conductor

Insualtion: Rubber Sheath

Screen: Copper Wire Brain Screent / Tinned Copper Wire Screen

Sheath: Low Smoke Low Halogen Rubber



The Advantage Of Low Smoke Low Halogen Rubber



When a fire occurs, it can reduce the toxic gases, protect people's lives





Brief introduction

1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.

2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90℃;for the other, it is 65℃.

3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.

4 The grounding wire should be well connected with the earth.

5 The cable should be prevented from exposing to the sunshine for a long time.

Implemented standard

1 For the non-spread combustion cable, implement GB12972

2 For the flame-retardant cable, implement MT818

3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.

Type and Name:



Type Description Application
MC-0.38/0.66 Rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.38/0.66kV
MCP-0.38/0.66 Shielded, rubber-sheathed flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.38/0.66kV
MCP-0.66/1.14 Shielded, rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14 Shielded ,monitoring and braiding reinforced type, As the power connection used in the excavator
rubber flexible cable for excavator or similar equipment with rated voltage 0.66/1.14kV,
  it can be dragged directly
MCPJR-0.66/1.14 Shielded ,monitoring and braiding reinforced type, As the power connection used in the excavator
rubber flexible cable for excavator or similar equipment with rated voltage 0.66/1.14kV,
  it must be used in the protective chain panel
MCPT-0.66/1.14 Metallic shielded rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.66/1.14kV
MCP-1.9/3.3 Shielded rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 1.9/3.3kV
MCPT-1.9/3.3 Metallic shielded rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 1.9/3.3kV
MCPTJ-1.9/3.3 Metallic shielded, monitoring type, rubber flexible cable for As the power connection used in the excavator
excavator or similar equipment with rated voltage 1.9/3.3kV
MY-0.38/0.66 Movable rubber flexible cable for mining As the power connection used in the mining
machine with rated voltage 1.9/3.3kV
MYP-0.38/0.66 Movable shield rubber flexible cable for mining As the power connection used in the mining
machine with rated voltage 0.38/0.66kV
MYP-0.66/1.14 Movable shield rubber flexible cable for mining As the power connection used in the mining
machine with rated voltage 0.66/1.14kV
MYPJ-3.6/6 Monitoring movable shield rubber flexible cable for mining As the power connection used in the mining t
ransformer and similar equipment with rated voltage3.6/6kV
MYPTJ-3.6/6 Metallic shielded monitoring type movable As the power connection used in the mining
rubber flexible cable transformer and similar equipment with rated voltage3.6/6kV
MYP-3.6/6 Movable shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-20℃
MYPT-3.6/6 Movable metallic shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-20℃
MYPD-3.6/6 Movable shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-40℃
MYPTD-3.6/6 Movable metallic shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-40℃
MZ-0.3/0.5 Driller cable for mining As the power connection of driller with rated
voltage 0.3/0.5kV
MZP-0.3/0.5 Driller shielded cable for mining As the power connection of driller with rated
voltage 0.3/0.5kV
MYQ-0.3/0.5 Movable light-type rubber flexible cable for mining Lighting in the mine, as the power connection
of the interlock and control signals
used in the transport machine and equipment



CorexSize Insulation Thickness Overall diameter(mm)
MCDP-0.66/1.44
Phase Grounding Control Phase Thickness Min Max
3x25 1x6 3x4 2 6 41 47
3x35 1x6 3x4 2 6 44 51
3x50 1x10 3x6 2.2 7 51.5 59
3x70 1x16 3x6 2.2 7 56 63.5
3x95 1x25 3x10 2.4 7 62 70.5
3x120 1x25 3x10 2.6 7 66.5 75.5
3x150 1x35 3x10 2.6 7 71.5 80.5
3x185 1x35 3x10 2.8 7 77 85.5



Core Type Nominal Size Min Insulation Resistance at 20℃(MΩ.km)
No more than 0.66/1.14KV 1.9/3.3KV
Phase Conducor or
Asistant Conductor
16 350 1150
25 300 980
35 260 850
50 230 740
70 210 630
95 200 550
120 200 510
150 180 450
185 160 400
Control Conductor 4.6.10 100 100
