Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | HOLD-ONE |
| Certification: | CCC,CE,KEMA,ISO |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 0.5km |
| Price: | 0.50-30.99USD/m |
| Packaging Details: | Wooden Drum or Steel Drum |
| Delivery Time: | 10 Days or More |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 1000km per Month |
|
Detail Information |
|||
| Conductor: | Copper | Insulation: | Rubber |
|---|---|---|---|
| Shield: | Cooper Braiding | Sheath: | Rubber |
| Rated Voltage: | 6/10KV | Application: | Mining |
| High Light: | trs flexible cable,rubber insulated wire |
||
Product Description

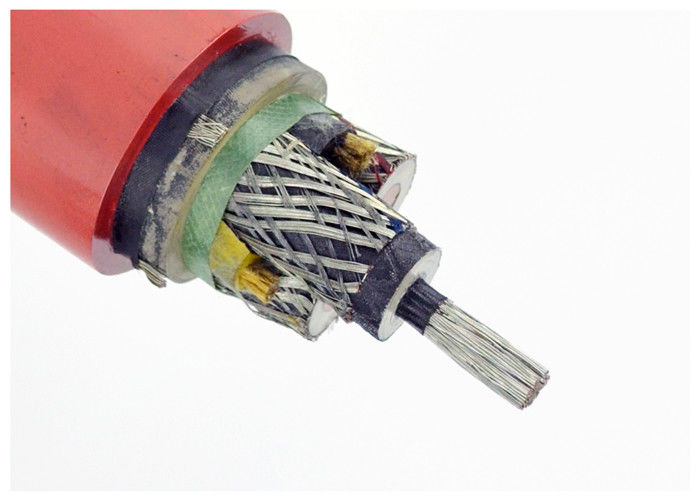

6 / 10 KV Copper Braiding Rubber Sheathed Cable MYPTJ With Monitoring Flexible Cores
Specification for Rubber Welding Cable
1. The cable has high flexibility properties.
2. The sheath shall be a natural rubber compound or a chloroprence rubber compound.
3. The chloroprene rubber sheath is heat and oil resistant and flame retardant.
4. The permissible continuous operating temperature 65°C
5. Miniun bending radius : 6 times of the over all outter diameter
6. long time exposure under sunshine unpermitted
Specifications
| Type | Rated voltage (KV) | Number of cores | Nominal cross sectional area (mm) |
||
| Principal lines | Earth lines | Control lines | |||
| MY MYP |
0.38/0.66 | 3 | 1 | - | 4-185 |
| MYP | 0.66/1.14 | 3 | 1 | - | 10-185 |
| MYP | 1.9/3.3 | 3 | 1 | - | 16-185 |
| MYP | 3.6/6 | 3 | 1 | - | 16-185 |
| MYP | 6/10 | 3 | 1 | - | 16-185 |
| MYP | 8.7/10 | 3 | 1 | - | 16-185 |
| MC MCP |
0.38/0.66 | 3 | 1 | 3-7 | 16-185 |
| MCP | 0.66/1.14 | 3 | 1 | 3 | 35-185 |
| MCP | 1.9/3.3 | 3 | 1 | 3 | 35-185 |
| MCPT MCPTJ |
0.66/1.14 | 3 | 1 | 3 | 16-185 |
| MCPT MCPTJ |
1.9/3.3 | 3 | 1 | 3 | 16-185 |
| MYPT MYPTJ |
1.9/3.3 | 3 | 3 | - | 35-185 |
| MYPT MYPTJ |
3.6/6 | 3 | 3 | - | 16-185 |
| MYPT MYPTJ |
6/10 | 3 | 3 | - | 16-185 |
| MYPT MYPTJ |
8.7/10 | 3 | 3 | 3 | 25-185 |
| MZ MZP |
0.3/0.5 | 3 | 1 | 1 | 2.5-4 |
| MYQ | 0.3/0.5 | 2-12 | - | - | 1.0-6 |
| Core Type | Nominal Size | Min Insulation Resistance at 20℃(MΩ.km) | |
| No more than 0.66/1.14KV | 1.9/3.3KV | ||
| Phase Conducor or Asistant Conductor |
16 | 350 | 1150 |
| 25 | 300 | 980 | |
| 35 | 260 | 850 | |
| 50 | 230 | 740 | |
| 70 | 210 | 630 | |
| 95 | 200 | 550 | |
| 120 | 200 | 510 | |
| 150 | 180 | 450 | |
| 185 | 160 | 400 | |
| Control Conductor | 4.6.10 | 100 | 100 |
