Commercial 3 Core Rubber Cable High Precision 16mm2 - 185mm2 Phase

Commercial 3 Core Rubber Cable High Precision 16mm2 - 185mm2 Phase

  • High Light

    rubber insulated wire

    ,

    rubber sheathed cable

  • Voltage
    0.66/1.14
  • Phase
    16mm2 To 185mm2
  • Conducotor
    Flexible Copper
  • Insualtion
    Rubber
  • Sheathed
    Rubber
  • Screnn
    Brain Copper Wire
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/CCC/TUV
  • Minimum Order Quantity
    500m
  • Price
    USD 0.4 To 10.5 per Meter
  • Packaging Details
    Steel Wooden Drum
  • Delivery Time
    10-15 Days
  • Supply Ability
    5KM per Day

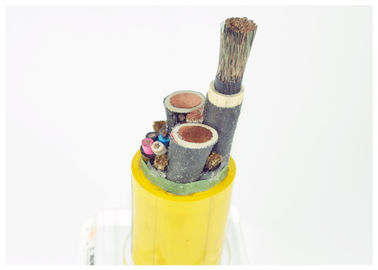

Commercial 3 Core Rubber Cable High Precision 16mm2 - 185mm2 Phase

Household / Commercial Rubber Sheathed Cable High Precision 16mm2 - 185mm2 Phase



Construction:



Conductor: Flexible Class 5 Copper Conductor

Insualtion: Rubber Sheath

Screen: Copper Wire or others

Sheath: Rubber Sheath



China supplier 0.38/0.66 rubber sheath mining power flexible coppe underground cable for mining cable

Brief introduction

1 Rated voltage of the cables is divided into 6 grades, which is 0.3/0.5kV,0.38/.066kV,1.9/3.3kV,3.6/6kV,6/10kV.

2 There are allowed long-term working temperatures of the cable conductor. For the cable of U(M)CPT-0.66/1.14, U(M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14 and 1.9/3.3kV, 3.6/6kV, 6/10kV, the temperature is 90℃;for the other, it is 65℃.

3 Minimum bending radius: For the cable of U (M)CPJB-0.66/1.14, U(M)CPJR-0.66/1.14,it is 15 times of the cable diameter; for the others, it is 6 times of the cable diameters.

4 The grounding wire should be well connected with the earth.

5The cable should be prevented from exposing to the sunshine for a long time.

Implemented standard

1 For the non-spread combustion cable, implement GB12972

2 For the flame-retardant cable, implement MT818

3 For the special mining cable(with bigger cross-section and higher voltage),implement the enterprise standard.

Type and Name:



Type Description Application
MC-0.38/0.66 Rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.38/0.66kV
MCP-0.38/0.66 Shielded, rubber-sheathed flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.38/0.66kV
MCP-0.66/1.14 Shielded, rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.38/0.66kV
MCPJB-0.66/1.14 Shielded ,monitoring and braiding reinforced type, As the power connection used in the excavator
rubber flexible cable for excavator or similar equipment with rated voltage 0.66/1.14kV,
  it can be dragged directly
MCPJR-0.66/1.14 Shielded ,monitoring and braiding reinforced type, As the power connection used in the excavator
rubber flexible cable for excavator or similar equipment with rated voltage 0.66/1.14kV,
  it must be used in the protective chain panel
MCPT-0.66/1.14 Metallic shielded rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 0.66/1.14kV
MCP-1.9/3.3 Shielded rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 1.9/3.3kV
MCPT-1.9/3.3 Metallic shielded rubber flexible cable for excavator As the power connection used in the excavator
or similar equipment with rated voltage 1.9/3.3kV
MCPTJ-1.9/3.3 Metallic shielded, monitoring type, rubber flexible cable for As the power connection used in the excavator
excavator or similar equipment with rated voltage 1.9/3.3kV
MY-0.38/0.66 Movable rubber flexible cable for mining As the power connection used in the mining
machine with rated voltage 1.9/3.3kV
MYP-0.38/0.66 Movable shield rubber flexible cable for mining As the power connection used in the mining
machine with rated voltage 0.38/0.66kV
MYP-0.66/1.14 Movable shield rubber flexible cable for mining As the power connection used in the mining
machine with rated voltage 0.66/1.14kV
MYPJ-3.6/6 Monitoring movable shield rubber flexible cable for mining As the power connection used in the mining t
ransformer and similar equipment with rated voltage3.6/6kV
MYPTJ-3.6/6 Metallic shielded monitoring type movable As the power connection used in the mining
rubber flexible cable transformer and similar equipment with rated voltage3.6/6kV
MYP-3.6/6 Movable shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-20℃
MYPT-3.6/6 Movable metallic shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-20℃
MYPD-3.6/6 Movable shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-40℃
MYPTD-3.6/6 Movable metallic shield rubber flexible cable for mining Mining equipment with rated voltage 3.6/6kV
the min. environment temperature is-40℃
MZ-0.3/0.5 Driller cable for mining As the power connection of driller with rated
voltage 0.3/0.5kV
MZP-0.3/0.5 Driller shielded cable for mining As the power connection of driller with rated
voltage 0.3/0.5kV
MYQ-0.3/0.5 Movable light-type rubber flexible cable for mining Lighting in the mine, as the power connection
of the interlock and control signals
used in the transport machine and equipment





Characteristics



1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.

2. Maximum permitted operating temperature of conductor is 60°C.

3. Permitted lowest working temperature is -35°C.

4. Cables can be used at places contaminated by mineral oil and fuel oil.

CorexSize Nominal Thickness Overall diameter(mm)
0.66/114
Phase Grounding Insulation Sheath MYP
3X4 1X4 1.6 4 26.5
3X6 1X6 1.6 4 29
3X10 1X10 1.8 4.5 32.5
3x16 1X10 1.8 4.5 35.5
3x25 1x16 2 5 41
3x35 1x16 2 5 44.5
3x50 1x16 2.2 5.5 51
3x70 1x25 2.2 5.5 56
3x95 1x25 2.4 6 63
3x120 1x35 2.4 6 67
3x150 1x50 2.6 6 74
3x185 1x50 2.8 6 78





Core Type Nominal Size Min Insulation Resistance at 20℃(MΩ.km)
No more than 0.66/1.14KV 1.9/3.3KV
Phase Conducor or
Asistant Conductor
16 350 1150
25 300 980
35 260 850
50 230 740
70 210 630
95 200 550
120 200 510
150 180 450
185 160 400
Control Conductor 4.6.10 100 100
