FRC Power Fire Resistant Cable 600 Volt 1000 Volt With Mica Tape Screen

FRC Power Fire Resistant Cable 600 Volt 1000 Volt With Mica Tape Screen

  • High Light

    fire rated cable

    ,

    fire resistant wire

  • Function
    Fire Proof
  • Screen
    Mica Tape
  • Rated Voltage
    600/1000kV
  • Insulation
    PVC Or XLPE
  • Sample
    Free
  • Number Of Cores
    1,2,3,4,5
  • Application
    Indoor And Outdoor
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/ISO/PCCC
  • Minimum Order Quantity
    200m
  • Price
    USD0.03-50 per meter
  • Packaging Details
    100m/roll or customized
  • Delivery Time
    As per requirement
  • Supply Ability
    10KM per Week

FRC Power Fire Resistant Cable 600 Volt 1000 Volt With Mica Tape Screen

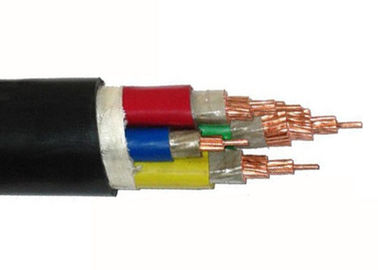

4 Cores FRC Power Fire Resistant Cable 600 Volt 1000 Volt With Mica Tape Screen





Rated Voltage: 0.6/1KV

Range of Nominal cross section: 1 core: 1.5 mm2 ~ 300 mm2 Multi core: 0.75 mm2 ~ 35 mm2

Application:

These cables are installed to supply power to building essential services including fire alarms,

sprinkler control system, emergency and evacuation lighting and smoke control systems,

such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels



Standards

International: IEC 60502, IEC 60227 IEC 60331, IEC 601034

China: GB/T 12706-91 GB306.1-2001, GB/T18380.3-2001

Other standards such as BS,DIN and ICEA upon request



Technical data

Rated voltage: 0.6-KV

Max. Conductor Temp.: normal (90°C), short circuit no more than 5 s (the highest temperature of conductor shall no more than 250°C )

Min. Ambient Temp.:The cable shall be pre heated if the ambient temperature is below 0°C

Min. Bending Radius: single core cable 20(d+D)±5%

Multi-core cable 15(d+D)±5%





Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded, with mica tape wound

Insulation: XLPE or LSZH compound

Sheath: LSZH compound

Core color: red, black, blue, white for active core, green/yellow for earth core, orange or red or black for sheath

Max. Operating Temperature : 100 meters per roll or wooden drum or as per requirement

Production Capacity : 20 kilometer/ day

MOQ : 5000 meters for small size, 1000 meters for big size

Certificates

CE, RoHS, CCC, KEMA and more others at request



Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
    mm mm kg/km   kV/5min In air(A) In soil(A)
1×1.5 0.7 1.8 7.7 81 12.1 3.5 22 33
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
4×2.5+1×1.5 0.7 1.8 16.5 313 7.41   26 35
4×4+1×2.5 0.7 1.8 17.7 424 4.61   34 45
4×6+1×4 0.7 1.8 19.1 535 3.08   43 57
4×10+1×6 0.7 1.8 22.1 760 1.83   60 77
4×16+1×10 0.7 1.8 25.1 1071 1.15   83 105
4×25+1×16 0.7 1.8 29 1556 0.727   105 125
4×35+1×16 0.9 1.9 31.4 1976 0.524   125 155
4×50+1×25 1 2.1 36 2689 0.387   160 185
4×70+1×35 1.1 2.2 41.1 3719 0.268   200 225
4×95+1×50 1.1 2.4 46.3 4903 0.193   245 270
4×120+1×70 1.2 2.5 51 6165 0.153   285 310
4×150+1×70 1.4 2.7 55.8 7431 0.124   325 345
4×185+1×95 1.6 2.9 62.1 9192 0.0991   375 390
4×240+1×120 1.7 3.1 68.8 11860 0.0754   440 450
