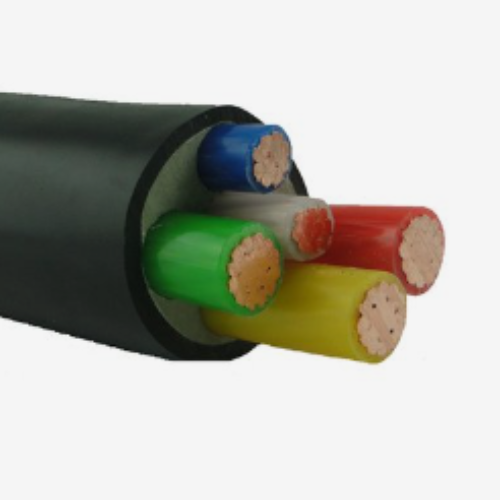

CU PO Low Smoke Halogen Free Cable Low Voltage For Construction Eco Friendly
  • name

CU PO Low Smoke Halogen Free Cable Low Voltage For Construction Eco Friendly

MOQ: 300m
Price: USD 0.5-50/meter
Standard Packaging: Fumigation Wooden Drum or Customized
Delivery Period: As per requirement
Supply Capacity: 500km per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HOLD-ONE
Certification
PCCC/ISO/CE/KEMA
Function:
Protecting Environmental
Armor:
Yes
Sheath Color:
Any Color
Sample:
Free
Rated Voltage:
0.6/1kV
Standard:
IEC60502-1,IEC61034,IEC60754
Test Voltage:
3.5KV/5min
Highlight:

low smoke zero halogen wire

,

xlpe lszh cable

Product Description

CU PO Low Smoke Halogen Free Cable , Low Voltage Cable For Construction​







Applications


For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is
not allowed.



                               Production Range of Low Voltage Cable
Type Constructions Number of cores Rated Voltage kV
0.6/1(1.2) 1.8/3
1.9/3.3
Nominal cross-section of conductor mm2
1, Cu/PVC/PVC
2, Cu/XLPE/PVC
3, Cu/XLPE/LSZH
4, Al/PVC/PVC
5, Al/XLPE/PVC
6, Al/XLPE/LSZH		 Conductor: Copper or Aluminum
Insulation: PVC or XLPE
Over sheath: PVC, PE or LSZH
Remark: The cable can be of flame retardant,
fire resistance, environment friendly or other property.		 1 1.5-800 10-800
2 1.5-500 10-500
3 1.5-500 10-500
4 (3C+E) 1.5-500 10-500
5 (4C+E) 1.5-500 10-500

1, Cu/PVC/PVC/STA/PVC
2, Cu/XLPE/PVC/STA/PVC
3, Cu/XLPE/LSZH/STA/LSZH
4, Al/PVC/PVC/STA/PVC
5, Al/XLPE/PVC/STA/PVC
6, Al/XLPE/LSZH/STA/LSZH		 Conductor: Copper or Aluminum
Insulation: XLPE or PVC
Inner sheath: PVC, PE or LSZH
Armor: Steel tape or Aluminum tape
Over sheath: PVC, PE or LSZH
Remark: The cable can be of flame retardant,
fire resistance, environment friendly or other property.		 1 1.5-800 10-800
2 1.5-500 10-500
3 1.5-500 10-500
4 (3C+E) 1.5-500 10-500
5 (4C+E) 1.5-500 10-500

1, Cu/PVC/PVC/SWA/PVC
2, Cu/XLPE/PVC/SWA/PVC
3, Cu/XLPE/LSZH/SWA/LSZH
4, Al/PVC/PVC/SWA/PVC
5, Al/XLPE/PVC/SWA/PVC
6, Al/XLPE/LSZH/SWA/LSZH		 Conductor: Copper or Aluminum
Insulation: XLPE or PVC
Inner sheath: PVC, PE or LSZH
Armor: Steel Wire or Aluminum wire
Over sheath: PVC, PE or LSZH
Remark: The cable can be of flame retardant,
fire resistance, environment friendly or other property.		 1 1.5-800 10-800
2 1.5-500 10-500
3 1.5-500 10-500
4 (3C+E) 1.5-500 10-500
5 (4C+E) 1.5-500



Packaging Material:

Steel wooden drum (fumigation)

Cable length in each drum: 500m/1000m or as per actual cable length requirements.



Drum Size:

As per cable length and container size



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
