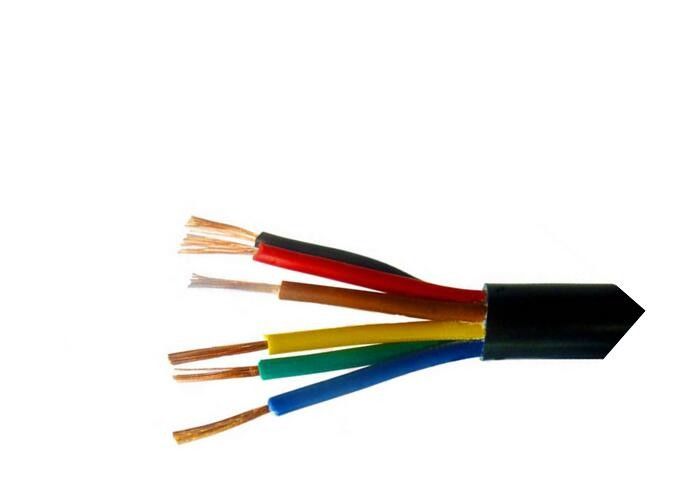

Muticore PO Sheathed Low Smoke Zero Halogen Cable , 1.5MM / 2.5MM Electrical Cable

Muticore PO Sheathed Low Smoke Zero Halogen Cable , 1.5MM / 2.5MM Electrical Cable

Products - Low Smoke Zero Halogen Cable
  • High Light

    lszh power cable

    ,

    xlpe lszh cable

  • Model Name
    LSHF Electric Cable
  • Rated Voltage
    450/750V
  • Cores
    1-5
  • Insulation Color
    Any Color
  • Working At
    70℃
  • Sample
    Available
  • Stock
    Ye
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,KEMA
  • Minimum Order Quantity
    500 meters
  • Price
    US$0.5~20 per meter
  • Packaging Details
    100m/Roll or Plastic/Wooden Drum
  • Delivery Time
    Depends on quantity
  • Payment Terms
    L/C, T/T
  • Supply Ability
    200 Kilometer per Month

Muticore PO Sheathed Low Smoke Zero Halogen Cable , 1.5MM / 2.5MM Electrical Cable

  • Muticore PO Sheathed Low Smoke Zero Halogen Cable , 1.5MM / 2.5MM Electrical Cable
Get Price Contact Now

Muticore PO Sheathed Low Smoke Zero Halogen Cable , 1.5MM / 2.5MM Electrical Cable



Applications



These cables are used for general purpose, as building wire for power, lighting and control wire to electrical appliances, suitable for use in conduit and for fixed, protected installation.



Standard IEC 60227, BS 6004, VDE0281, GB/T 5023, JB/T8734
Constructions

Conductor: Class 1/2 Plain annealed copper wires, solid or stranded

Insulation: PVC

Core color: Brown, Grey, Black, Blue, Green/Yellow or others on request
Max. Operating Temperature 70℃, can be 90℃,105℃ as per requirement
Packing 100 meter/roll or as per requirement
Production Capacity 100 kilometer/ day
MOQ 10000 meters for small size, 5000 meters for middle size, 1000 meters for big size
Delivery time 10~15 working days
Remark The cable can be of flame retardance, fire resistance and other property



Technical data



Rated voltage:0.6/1kV Low Voltage

Maximum Conductor Temperature: under normal (75 ℃), emergency (130℃) or short circuit no more than 5 s (160℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core without armor

15 x cable O.D for multi core without armor

15 x cable O.D for single core with armor

12 x cable O.D for multi core with armor



Certificates



ISO,CE, KEMA ,IEC, RoHS, CCC, P3C and more others



CHARACTERISTICS



Maximum Conductor operating temperature: +70°C
Lowest ambient temperature for fixed installation:-30°C
Lowest installation temperature: -5°C
Maximum short-circuit conductor temperature:+160°C
Test voltage:2500V
Flame retardant: IEC60332
Minimum Bending radius For cable diameter D (mm)
  D≤8 8<D≤12 12<D≤20 D>20
Normal use 4D 5D 6D 6D
Careful bending at termination 2D 3D 4D 4D
