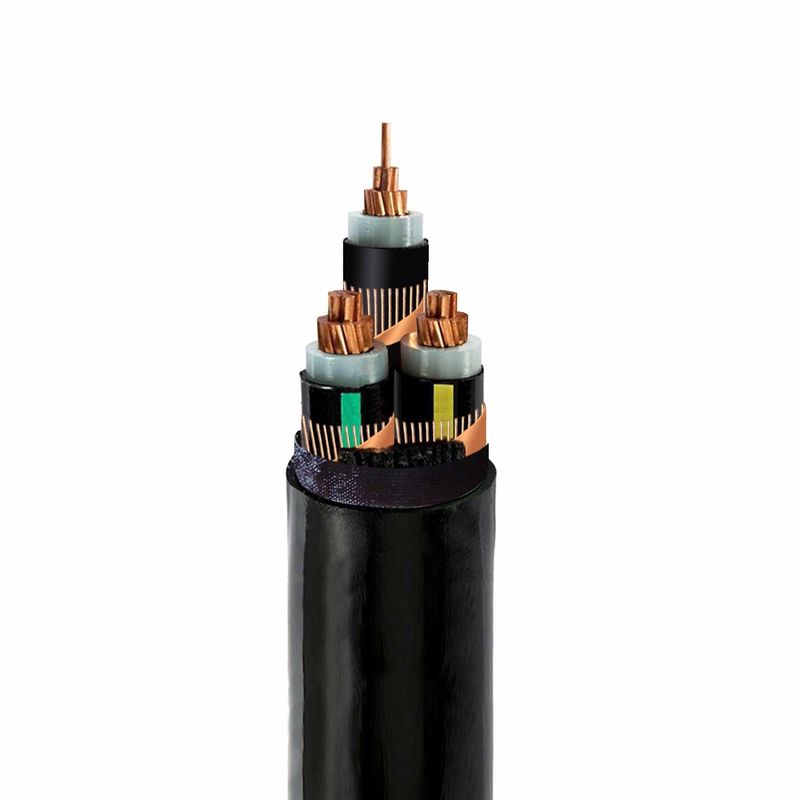

Three Core PO Sheathed MV Power Cable , XLPE LSZH Cable Copper Conductor
  • Three Core PO Sheathed MV Power Cable , XLPE LSZH Cable Copper Conductor
  • Three Core PO Sheathed MV Power Cable , XLPE LSZH Cable Copper Conductor

Three Core PO Sheathed MV Power Cable , XLPE LSZH Cable Copper Conductor

Place of Origin China
Brand Name HOLD-ONE
Certification ISO,CE,IEC,TUV,KEMA
Product Details
Product Model:
LSZH Cable
Conductor Material:
Copper
Insulation Material:
XLPE
Cores:
3 Cores
Made Standard:
IEC60502-1
Working At:
90℃
Sample:
Free
Highlight:

low smoke zero halogen wire

,

lszh power cable

Payment & Shipping Terms
Minimum Order Quantity
200 Meters
Price
US$0.42~122 / Meter
Packaging Details
Wooden Drum
Delivery Time
Depends on quantity
Payment Terms
T/T, L/C
Supply Ability
1500 KM per Month
Product Description

Three Core PO Sheathed LSZH MV Power Cable 90℃ Working Temperature ISO CE Certification

Applications:


This product is applicable to the power transmission and distribution line with AC rated voltage(U0/U) of 3.6/6kV-26/36kV system.It is routed in air (cable bridge frame,indoor wall support,and tray) and soil(direct buried, cable trench,pipe ect.) respectively according to difference of the protection layer structure.


Structures:



Stranded bare aluminum conductor, Inner layer of semi-conducting material, Core insulation of cross-linked polyethylene, Outer layer of semi-conducting material, Screen of copper tape, Fillers strip, Yarn, or Paper, Non woven wrapping tape , Extruded PVC inner covering, Galvanized Steel Tape Armour, Overall Sheath polyvinylchloride (PVC) or FR-PVC, PE, LSOH



Standards:



International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV32, ZR-YJV72 only)

China: GB/T 12706, (GB/T 18380-3 for ZR-YJV32, ZR-YJV72 only)

Other standards such as BS,DIN and ICEA upon request



Technical data:



Maximum Conductor Temperature: under normal (90 OC), emergency (130OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0 OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 15 x cable O.D for single core

12 x cable O.D for multi core



Test voltage 6 / 10 kV [kV] 21 / 5 min.
  12 / 20 kV [kV] 42 / 5 min.
  18 / 30 kV [kV] 63 / 5 min.
Temperature range in motion   -5°C till +70°C
  fixed   -20°C till +70°C
Operating temperature short circuit °C 250
Short circuit time max. [sec] 5
Bending radius min. x diameter 15
Flammability standard   EN 60332-1-2





We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
