Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | HOLD-ONE |
Certification: | CE/KEMA/CCC/TUV |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 500M |
Price: | 0.1USD to 5.0USD |
Packaging Details: | 100m/Roll |
Delivery Time: | Within one week |
Payment Terms: | L/C, T/T |
Supply Ability: | 100km/days |
Detail Information |
|||
Size: | 0.5mm2 -10mm2 | Cable Type: | House Wiring Cable |
---|---|---|---|
Standard: | IEC60227,IEC60754 | Rated Voltage: | 450/750V |
Structure: | CU/PO | Insulation Color: | As Per Requirement |
Working Degree: | 70℃ | ||
High Light: | low smoke zero halogen wire,lszh power cable |
Product Description

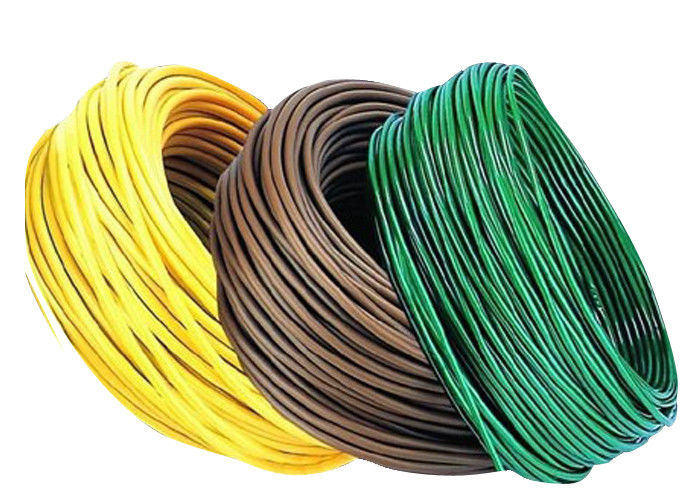

Professional 100M Length LSZH Cable , 1.5MM 2.5MM 4MM Electrical Wire Roll
Single-core non-sheathed cables with flexible conductor for internal wiring for a conductor of 90℃
Code designation: 60227 IEC 08 (International)
Application
pvc insulated electric wire/buidling wire is suitable for use in power installations, fixed wiring or flexible connections for electrical
appliance like lighting, electronic equipment, instrument and communication equipment with rated
voltage 450/750V or less.
Construction
Conductor : cu
Insulation : PVC
Specifications
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km |
mm2 | mm | mm2 | kg/km | Ω /km |
0.5 | 1/0.80 | 2.3 | 8.5 | 36.0 |
0.75(A) | 1/0.97 | 2.5 | 11.1 | 24.5 |
0.75(B) | 7/0.37 | 2.6 | 12.0 | 24.5 |
1.0(A) | 1/1.13 | 2.7 | 13.9 | 18.1 |
1.0(B) | 7/0.43 | 2.8 | 15.0 | 18.1 |
Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight | Max. D.C Resistance of Conductor (20 ℃)Ω /km | ||
mm2 | mm | mm2 | kg/km | Ω /km | ||
Copper | Aluminium | Aluminium | Copper | |||
1.5(A) | 1/1.38 | 3.2 | 20.3 | 12.1 | ||
1.5(B) | 7/0.52 | 3.3 | 21.6 | 12.1 | ||
2.5(A) | 1/1.78 | 3.9 | 31.6 | 17 | 11.8 | 7.41 |
2.5(B) | 7/0.68 | 4.0 | 34.8 | 7.41 | ||
4(A) | 1/2.55 | 4.4 | 47.1 | 22 | 7.39 | 4.61 |
4(B) | 7/0.85 | 4.6 | 50.3 |
Temperature range :
during installationi : +5 °C up to +90 °C
fixed installed : -30 °C up to +70 °C
at short circuit of max. 5 s : up to 150 °C
ambient temperature at storage : up to 40 °C
Nominal voltage : Uο/U = 300/500 V
Test voltage : 2000 V
Minimal inner bending radius : 4D for D < 8 mm
5D for 8 - 12 mm
6D for D > 12 mm
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
