Electrical XLPE Insulated Cable 4 Cores 0.6/KV For Industrial Plantsc

Electrical XLPE Insulated Cable 4 Cores 0.6/KV For Industrial Plantsc

  • High Light

    xlpe power cable

    ,

    cross linked polyethylene cable

  • Product Name
    4 Cores MV Cable
  • Insulation
    XLPE
  • Armour
    None
  • Conductor
    Copper
  • Cores
    4 Cores
  • Standard
    IEC, BS, IS, VDE
  • Warranty
    2 Years
  • Free Smaple
    Yes
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    ISO,CE,IEC,TUV,KEMA
  • Minimum Order Quantity
    500 Meters
  • Price
    US$0.51 - US$125 / Meter
  • Packaging Details
    Wooden Drums
  • Delivery Time
    10 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    21,000 KMs per Month

Electrical XLPE Insulated Cable 4 Cores 0.6/KV For Industrial Plantsc

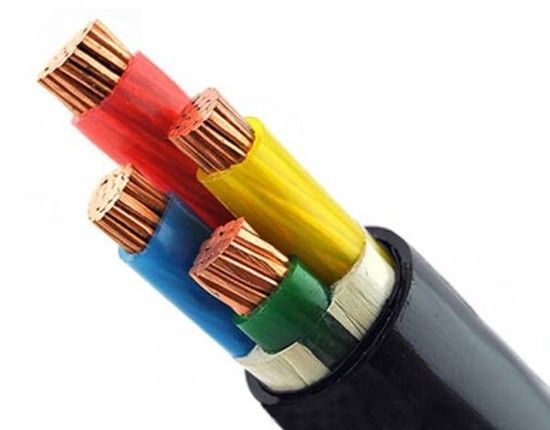

4 Cores 0.6/kV XLPE Electrical Cable Copper Conductor For Industrial Plants



XLPE is suitable for voltage ranges from low to extra high voltage, surpassing other insulation materials such as PVC, Ethylene Propylene Rubber (EPR) and silicone rubbers. Cross-linking the polyethylene also enhances the chemical and oil resistance at elevated temperatures and makes it suitable for use as a Low Smoke Zero Halogen material.



Improved water-tree resistance is another benefit of XLPE insulation for LV cables and MV cables over PE insulations. Water treeing is a defect which is the result of imperfections in the insulation where fracture lines occur and grow in the direction of the electric field, increasing with electrical stress. It should be noted that this effect is not limited to PE materials.



Physical and Electrical Characteristics



No.cores x Insulation
thickness
Sheath Outer Ø weight Current ratings in air 30℃ Current ratings buried 20℃
cross-sec. thickness approx. approx.
Nominal
Phase Neutral value
mm² mm mm mm mm kg / km A A
3×4+1×2.5 0.7 0.7 1.8 12.7 277 37 47
3×6+1×4 0.7 0.7 1.8 13.9 363 47 60
3×10+1×6 0.7 0.7 1.8 16.1 527 64 81
3×16+1×10 0.7 0.7 1.8 18.6 766 85 106
3×25+1×16 0.9 0.7 1.8 22.2 1140 113 137
3×35+1×16 0.9 0.7 1.8 24.6 1475 139 164
3×50+1×25 1 0.9 1.8 27.7 1951 173 198
3×70+1×35 1.1 0.9 1.9 31.9 2662 222 246
3×95+1×50 1.1 1 2.1 36.2 3578 271 293
3×120+1×70 1.2 1.1 2.2 39.9 4567 318 334
3×150+1×70 1.4 1.1 2.3 45 5514 370 375
3×185+1×95 1.6 1.1 2.5 49.4 6850 427 422
3×240+1×120 1.7 1.2 2.7 54.9 8741 507 492
3×300+1×150 1.8 1.4 2.9 62.9 11052 599 560



Using features:



XLPE/PVC insulated electrical wire are covering series of wire products, and its working temperature isdifferent according to different insulation materials, mainly 70 and 90 degrees temperature, etc.



According to the conductor type, including solid conductor PVC/XL .PE insulated electrical wire,standed PVC/XL PE insulated wire, Flexible PVC/XLPE insulated wire with different colors.



According to its shape, including flat wire, round wire, etc. with different colors.



Accoding to its core number, including single core wire, multi-core wire, etc. with different colors.



The highest allowed operating temperature of conductor for long-term working is 90oC. In short-circuit(Max. Long-term is no more than 5 seconds). The highest temperature for conductor is no more than250.



D.C Resistance of the conductor complies with the stipulations of GB/T3956-1997.



The environment temperature should be no lower than 0 when lay. Otherwise it should be preheated.The cable is laid without horizontal drop limit. The Min. Bending radius of three core cable should be nosmaller than 12 times of cable outer diameter.

Partial Discharge Test: The discharge volume should be no more than 10pC under 1.73Uo for the cable.





RECOMMENDED ORDERING PARAMETERS



For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :



1 International or Special Standard. (Alternatively, the precise usage of the cable.)

2 Rated voltage.

3 Copper or Aluminium conductors.

4 Size of each conductor.

5 Insulation material : PVC XLPE or others.

6 Number and identification of conductors.

7 Other requirements.

8 Packing.

9 Required delivery time.

10 Required validity.



If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
