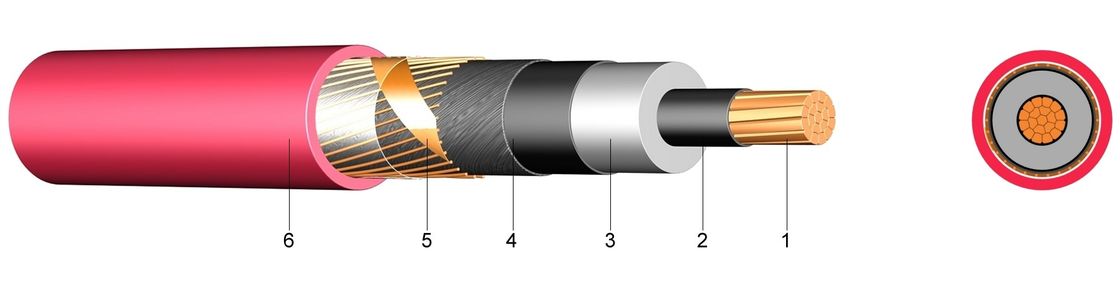

26KV 35KV Single Core XLPE Cable Ink Printing / Embossing Cable Mark
XLPE insulated cables can be used for nearly all installations : in the ground, in cable ducts, indoors, in power stations, in industrial plants , in switching stations. Thanks to their better thermal characteristics they are particularly recommended where :
- high ambient temperatures exict
- cables are exposed to the sun
- cables are laid in ducts in a concrete block
- cables are grouped
- high emergency loads are important
- high short-circuit currents are required
- high earth leakage currents have to be transmitted by the screens
XLPE is suitable for voltage ranges from low to extra high voltage, surpassing other insulation materials such as PVC, Ethylene Propylene Rubber (EPR) and silicone rubbers. Cross-linking the polyethylene also enhances the chemical and oil resistance at elevated temperatures and makes it suitable for use as a Low Smoke Zero Halogen material.
Physical and Electrical Characteristics
No.cores x | Insulation thickness |
Sheath | Outer Ø | weight | Current ratings in air 30℃ | Current ratings buried 20℃ | |
cross-sec. | thickness | approx. | approx. | ||||
Nominal | |||||||
Phase | Neutral | value | |||||
mm² | mm | mm | mm | mm | kg / km | A | A |
3×4+1×2.5 | 0.7 | 0.7 | 1.8 | 12.7 | 277 | 37 | 47 |
3×6+1×4 | 0.7 | 0.7 | 1.8 | 13.9 | 363 | 47 | 60 |
3×10+1×6 | 0.7 | 0.7 | 1.8 | 16.1 | 527 | 64 | 81 |
3×16+1×10 | 0.7 | 0.7 | 1.8 | 18.6 | 766 | 85 | 106 |
3×25+1×16 | 0.9 | 0.7 | 1.8 | 22.2 | 1140 | 113 | 137 |
3×35+1×16 | 0.9 | 0.7 | 1.8 | 24.6 | 1475 | 139 | 164 |
3×50+1×25 | 1 | 0.9 | 1.8 | 27.7 | 1951 | 173 | 198 |
3×70+1×35 | 1.1 | 0.9 | 1.9 | 31.9 | 2662 | 222 | 246 |
3×95+1×50 | 1.1 | 1 | 2.1 | 36.2 | 3578 | 271 | 293 |
3×120+1×70 | 1.2 | 1.1 | 2.2 | 39.9 | 4567 | 318 | 334 |
3×150+1×70 | 1.4 | 1.1 | 2.3 | 45 | 5514 | 370 | 375 |
3×185+1×95 | 1.6 | 1.1 | 2.5 | 49.4 | 6850 | 427 | 422 |
3×240+1×120 | 1.7 | 1.2 | 2.7 | 54.9 | 8741 | 507 | 492 |
3×300+1×150 | 1.8 | 1.4 | 2.9 | 62.9 | 11052 | 599 | 560 |
RECOMMENDED ORDERING PARAMETERS
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.
We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
