AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082

MOQ: 0.5KM
Price: 0.19-10.99USD
Standard Packaging: Wooden Drum/ Steel Drum
Delivery Period: 15Days or More
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 50000 Kilometers per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
IEC61089, ASTM B231, EN51082
Material:
Aluminium
Application:
Overhead Power Line
Sectional Area:
16mm²/.../800mm²
No. Of Single Wire:
7pcs/.../61pcs
Standard:
EN 51082
Type:
AAC
Highlight:

all aluminium alloy conductor

,

acsr conductor

Product Description



AAC All Aluminium Conductor Creep Resistance High Tension Strength


Specifications


AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.



AAC
                EN 51082

  Area No. of Diameter   Mass per unit Rated DC
Code Name   wires Wire   Cond. length strength Resistance
  mm2   mm   mm kg/km kN Ω/km
Midge 23.3 7 2.06   6.18 63.8 4.20 1.2249
Gnat 26.9 7 2.21   6.63 73.4 4.83 1.0643
Mosquito 36.9 7 2.59   7.77 100.8 6.27 0.7749
Ladybird 42.8 7 2.79   8.37 117.0 7.28 0.6678
Ant 52.8 7 3.10   9.30 144.4 8.72 0.5409
Fly 63.6 7 3.40   10.2 173.7 10.49 0.4497
Bluebottle 73.6 7 3.66   11.0 201.3 11.78 0.3880
Earwig 78.6 7 3.78   11.3 214.7 12.57 0.3638
Grasshopper 84.1 7 3.91   11.7 229.7 13.45 0.3400
Clegg 95.6 7 4.17   12.5 261.3 15.30 0.2989
Wasp 106.0 7 4.39   13.2 289.6 16.95 0.2697
Beetle 106.4 19 2.67   13.4 292.4 18.08 0.2701
Bee 132.0 7 4.90   14.7 360.8 21.12 0.2165
Hornet 157.6 19 3.25   16.3 433.2 26.01 0.1823
Caterpillar 185.9 19 3.53   17.7 511.1 29.75 0.1546
Chafer 213.2 19 3.78   18.9 586.0 34.12 0.1348
Spider 237.6 19 3.99   20.0 652.9 38.01 0.1210
Cockroach 265.7 19 4.22   21.1 730.4 42.52 0.1081
Butterfly 322.7 19 4.65   23.3 886.8 51.63 0.0891
Moth 373.1 19 5.00   25.0 1025.3 59.69 0.0770
Drone 372.4 37 3.58   25.1 1027.1 59.59 0.0774
Centipede 415.2 37 3.78   26.5 1145.1 66.43 0.0695
Maybug 486.1 37 4.09   28.6 1340.6 77.78 0.0593
Scorpion 529.8 37 4.27   29.9 1461.2 84.77 0.0544
Cicada 628.3 37 4.65   32.6 1732.9 100.54 0.0459

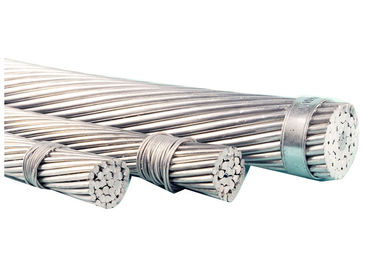

AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082 0


AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082 1





AAC All Aluminium Conductor Creep Resistance High Tension Strength Standard EN 51082 2
