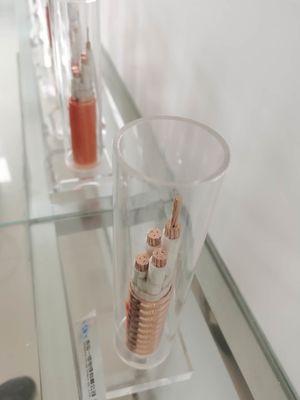

Lighting Mineral Insulated PVC Fire Resistant Power Cable

Product Details:
Brand Name: HOLD-ONE
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Packaging Details: Wooden drum
Delivery Time: 7 Days after received deposit
Payment Terms: L/C, T/T
  • Detail Information
  • Product Description

Detail Information

Product Name: Mineral Insulated Cable Conductor Material: Copper
Insulation Material: PVC Outer Jacket: Clean & Smooth PVC
Type: Insulated Number Of Conductors: Multicore
High Light:

PVC Fire Resistant Power Cable


Fireproof Mineral Insulated Cable


IEC 60702 Mineral Insulated Cable

Product Description

Mineral insulated fire-resistant power cable


Mineral cable application
Our mineral insulated fire-resistant power cables. It is widely used for lighting, emergency broadcasting, fire alarm equipment, automatic fire fighting facilities and other emergency equipment in relatively closed or concentrated buildings and facilities.
-Public buildings: high-rise buildings, ancient buildings, schools, hospitals, shopping centers, theaters, power stations, etc.
. -Underground places: subway, underground square, tunnel, underground warehouse; transportation hub: airport, station, railway station.
-High temperature places such as metallurgy and steel.
-Dangerous, chemical production, storage place.
Lightweight rubber cable
Household appliances, small electric equipment
Soft, light and good bending performance;
YQW has weather resistance and certain oil resistance
Medium-sized rubber cable
Industry, widely used in agricultural electrification
YZW has weather resistance and certain oil resistance
Heavy rubber cable
Used in port machinery, searchlights, large-scale water conservancy irrigation and drainage stations, etc.
Has good versatility, complete series specifications, good performance and stability;
YCW has weather resistance and certain oil resistance
Waterproof rubber cable
Diving motor
Good bending performance, can withstand frequent movement
Welding machine rubber cable
Electric welding machine
Tinned power cable for field use


Mineral cable structure


1. Conductor

Pure copper wire class 1 or class 2 solid or stranded wire, in line with GB/T 3956, IEC 60228,

BS 6360 standard. 2


MICA tape + mineral material

3. Inner sheath

Ordinary copper

4. Low-smoke outer sheath

Zero halogen.

5. Fill

Fireproof Materials



Cable Standard


GB/T 34926-2017, IEC 60702 and other standards.

OEM or ODM service will be accepted.


Product Features


1. Rated voltage

0.6 / 1kV, 450 / 750V (Uo / U)

2. Operating temperature rating

-15°C to +90°C

3. Minimum bending radius

Greater than: 6 x outer diameter

4. Insulation color

Brown, black, red, black, blue, yellow, white, green/yellow, gray, brown, or according to customer requirements.

5. The outer sheath color is



Product advantages


1. Good fire resistance.

Pass the fire resistance test at 1000℃, 180min;

Meet the CWZ test of British BS6387.

2. Long continuous length.

Each continuous length can exceed 1000 meters;

3. Large cross section.

The maximum cross-sectional area of ​​a single-core cable is 630 mm 2,

The maximum cross-sectional area of ​​a multi-core cable is 120 mm 2.

4. Good flexibility.

It can be placed on a cable tray with a bending radius of 6-10 diameters.

5. Smokeless and non-toxic when burned.

Inorganic materials are used as thermal insulation materials, which are environmentally friendly products.

6. Large overload capacity.

Not only the capacity is large, but also the overload capacity is large; the service life is long.

Inorganic insulating materials have high temperature resistance and are not easy to age.
