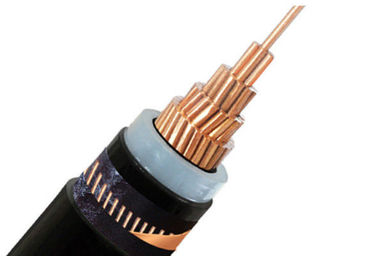

XLPE Insulated Cable

MOQ:	200 meter
Price:	US$ 3.9~87.6
Standard Packaging:	wooden Iron drum
Delivery Period:	15 working days
Payment Method:	T/T or LC
Supply Capacity:	3000km per month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QINGDAO YICABLE CABLE

Certification

KEMA, CE, CCC, KEMA

Product Name:

33kV XLPE Insulated Cable

Size:

35mm2 To 1000 Mm2

Core Number:

3 Core

Standard:

IEC 60502-2 ,IEC 60228

Application:

For Laying Indoors And Outdoors

Rated Voltage:

33kV

Free Sample:

Yes

Warranty:

24 Months

Highlight:

xlpe power cable

cross linked polyethylene cable

Product Description

Three Core Copper Conductor XLPE Insulated Medium Voltage 11kV Power Cable

Construction

Conductor : Compact stranded copper conductor, Cl.2 as per IEC 60228

Conductor Screen: Semi-conductor

Insulation : XLPE(cross-linked polyethylene) rated at 90 OC

Insulation Screen: Semi-conductor

Screen : Copper tape

Sheath : PVC or FR-PVC type ST2 to IEC 60502, black

Applications
For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is not allowed.

Standards
International: IEC 60502, IEC 60228, (IEC 60332-3 for ZR-YJV only)
China: GB/T 12706, (GB/T 18380-3 for ZR-YJV only)
Other standards such as BS,DIN and ICEA upon request

Technical data

Rated voltage:6/10kV

Maximum Conductor Temperature: under normal (90^OC), emergency (130^OC) or short circuit no more than 5 s (250℃) conditions.

Min. Ambient Temp. 0^OC, after installation and only when cable is in a fixed position

Min. Bending Radius: 20 x cable O.D for single core

15 x cable O.D for multi core

Specifications

Nom. Cross-section of conductor	Strands No./Dia. Of Conductor	Insulation Thickness	Sheath Thickness	Approx. O.D.	Approx. Weight	Max. D.C Resistance of Conductor (20 ℃)	Testing Voltage A.C	Current Rating
mm²	pc/mm	mm	mm	(mm)	kg/km	Ω /km	kV/5min	In air (A)	In soil(A)
1 × 25	7/2.14	3.4	2	20.0	598	0.727	21	140	150
1 × 35	7/2.52	3.4	2	22.0	719	0.524	21	175	180
1 × 50	10/2.52	3.4	2	23.0	884	0.387	21	205	215
1 × 70	14/2.52	3.4	2	24.0	1097	0.268	21	260	265
1 × 95	19/2.52	3.4	2	26.0	1378	0.193	21	315	315
1 × 120	24/2.52	3.4	2	28.0	1658	0.153	21	365	360
1 × 150	30/2.52	3.4	2	30.0	1967	0.124	21	415	405
1 × 185	37/2.52	3.4	2	31.0	2335	0.0991	21	475	455
1 × 240	48/2.52	3.4	2	34.0	2908	0.0754	21	565	530
1 × 300	61/2.52	3.4	2	36.0	3507	0.0601	21	645	595
1 × 400	61/2.97	3.4	2.5	39.0	4503	0.0470	21	750	680
1 × 500	61/3.23	3.4	2.5	42.0	5479	0.0366	21	865	765
1 × 630	61/3.50	3.4	2.5	48.0	6952	0.0283	21	990	860
1 × 800	91/3.20	3.4	2.6	52.0	7120	0.0221	21	1140	950
1 × 1000	91/3.75	3.4	2.8	57.0	10500	0.0176	21	1250	1040
3 × 25	7/2.14	3.4	2.3	41.0	895	0.727	21	120	125
3 × 35	7/2.52	3.4	2.4	44.0	2293	0.524	21	145	155
3 × 50	10/2.52	3.4	2.5	46.0	2812	0.387	21	175	180
3 × 70	14/2.52	3.4	2.6	50.0	3508	0.268	21	220	220
3 × 95	19/2.52	3.4	2.7	53.0	4402	0.193	21	265	265
3 × 120	24/2.52	3.4	2.8	56.0	5319	0.153	21	305	300
3 × 150	30/2.52	3.4	2.9	59.0	6309	0.124	21	350	340
3 × 185	37/2.52	3.4	3.0	62.0	7319	0.0991	21	395	380
3 × 240	48/2.52	3.4	3.2	68.0	9218	0.0754	21	470	435
3 × 300	61/2.52	3.4	3.4	72.0	11159	0.0601	21	535	485
3 × 400	61/2.97	3.4	3.6	81.0	15107	0.0470	21	610	520
