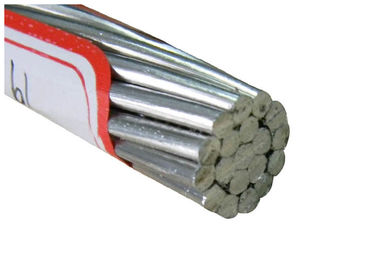

All Aluminium Stranded Bare Conductor Aac , Astm B231 , En 51082 Standard

MOQ:	500 m
Price:	0.19-10.99USD
Standard Packaging:	Wooden Drum/ Steel Drum
Delivery Period:	15 Days or More
Payment Method:	L/C, D/A, D/P, T/T
Supply Capacity:	50000 Kilometers per Month

Details Information

Product Description

Detail Information

Place of Origin

China

Brand Name

QINGDAO YICABLE CABLE

Certification

ASTM B231, EN 51082

Conductor:

Aluminium

Application:

Overhead Power Line

Type:

High Voltage

No. Of Wires:

7pcs/.../61pcs

Highlight:

aaac conductor

acsr conductor

Product Description

Detailed Product Description

Material:	Aluminium	Application:	Overhead Power Line
Sectional Area:	16mm²/.../800mm²	No. Of Single Wire:	7pcs/.../61pcs
Insulation& Sheatrh:	No	Type:	AAC

AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications

AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.

AAC
All Aluminium Stranded Conductors (Class A & Class AA) ASTM B-231

Code name	Area		Stranding and wire diameter	Approox. Overall diameter	Weight	Nominal breaking load	Nom. DC resistance at 20 deg.
	Nominal	Actual	Stranding and wire diameter	Approox. Overall diameter	Weight	Nominal breaking load	Nom. DC resistance at 20 deg.
	AWG or MCM	mm2	mm	mm	kg/km	kN	ohm/km
PEACHBELL	6	13.29	7/1.554	4.67	37	2.49	2.1692
ROSE	4	21.16	7/1.961	5.89	58	3.96	1.3624
IRIS	2	33.61	7/2.474	7.42	93	5.97	0.8577
PANSY	1	42.39	7/2.776	8.33	117	7.32	0.6801
POPPY	1/0	53.48	7/3.119	9.36	147	8.73	0.539
ASTER	2/0	67.42	7/3.503	10.51	186	11.00	0.4276
PHLOX	3/0	85.03	7/3.932	11.80	234	13.47	0.339
OXLIP	4/0	107.23	7/4.417	13.26	296	16.98	0.2688
VALERIAN	250	126.71	19/2.913	14.57	349	20.62	0.2275
SNEEZEWORT	250	126.71	7/4.80	14.40	349	20.07	0.2275
LAUREL	266.8	135.16	19/3.01	15.05	373	22.00	0.2133
DAISY	266.8	135.16	7/4.96	14.90	373	21.41	0.2133
PEONY	300	152.0	19/3.193	15.97	419	24.03	0.1896
TULIP	336.4	170.45	19/3.381	16.91	470	26.95	0.1691
DAFFODIL	350	177.35	19/3.447	17.24	489	28.04	0.1625
CANNA	397.5	201.42	19/3.673	18.36	555	31.84	0.1431
GOLDENTUFT	450	228.0	19/3.909	19.55	629	34.99	0.1264
SYRINGA	477	241.68	37/2.882	20.19	666	38.49	0.1193
COSMOS	477	241.68	19/4.023	20.12	666	37.08	0.1193
HYACINTH	500	253.35	37/2.951	20.65	698	40.35	0.1138
ZINNIA	500	253.35	19/4.12	20.60	698	38.88	0.1138
DAHLIA	556.5	282	19/4.346	21.73	777	43.27	0.1022
MISTLETOE	556.5	282	37/3.114	21.79	777	43.62	0.1022
MEADOWSWEET	600	304	37/3.233	22.63	838	47.03	0.0948
ORCHID	636	322.25	37/3.33	23.31	888	49.85	0.0894
HEUCHERA	650	329.35	37/3.366	23.56	908	50.95	0.0875
FLAG	700	354.71	61/2.72	24.48	978	51.46	0.0813
VERBENA	700	354.71	37/3.493	24.45	978	54.87	0.0813
NASTURTIUM	715.5	362.58	61/2.75	24.76	1000	58.74	0.0795
VIOLET	715.5	362.58	37/3.533	24.74	1000	56.09	0.0795
CATTAIL	750	380	61/2.817	25.35	1048	59.85	0.0759
PETUNIA	750	380	37/3.617	25.32	1048	58.75	0.0759
LILAC	795	402.84	61/2.90	26.11	1111	63.45	0.0715
ARBUTUS	795	402.84	37/3.724	26.06	1111	62.32	0.0715
SNAPDRAGON	900	456.06	61/3.086	27.78	1257	69.78	0.0632
COCKSCOMB	900	456.06	37/3.962	27.73	1257	68.48	0.0632
GOLDENROD	954	483.42	61/3.177	28.60	1333	78.96	0.0596
MAGNOLIA	954	483.42	37/4.079	28.55	1333	72.58	0.0596
CAMELLIA	1000	506.71	61/3.251	29.36	1397	77.53	0.0569
HAWKWEED	1000	506.71	37/4.176	29.23	1397	76.08	0.0569
LARKSPUR	1033.5	523.68	61/3.307	29.76	1444	80.12	0.055
BLUEBELL	1033.5	523.68	37/4.244	29.72	1444	78.63	0.055
MARIGOLD	1113	563.93	61/3.432	30.89	1555	86.28	0.0511
HAWTHORN	1192.5	604.26	61/3.551	31.05	1666	92.45	0.0477
NARCISSUS	1272	644.51	61/3.668	33.02	1777	98.61	0.0447
COLUMBINE	1351.5	684.84	61/3.78	34.01	1888	104.78	0.0421
CARNATION	1431	725.1	61/3.89	35.03	1999	107.68	0.0398
GLADIOLUS	1510.5	765.35	61/4.00	35.09	2110	113.65	0.0376
COREOPSIS	1590	805.68	61/4.099	36.51	2221	119.64	0.0358
JESSAMINE	1750	886.71	61/4.302	38.73	2445	131.68	0.0325

All Aluminium Stranded Bare Conductor Aac , Astm B231 , En 51082 Standard 0
