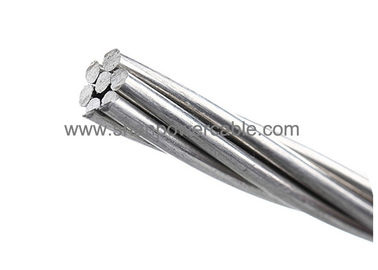

All Aluminium Alloy Stranded Bare Conductors AAAC 18.8sq mm ~ 996sq mm

MOQ: 500m
Price: 0.10-30.99USD/m
Standard Packaging: Wooden Drum or Steel Drum
Delivery Period: 15 Days
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000km per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
EN 51082
Material Of Conductor:
Aluminium Alloy
Code Name:
Box, Pine, Totara, Redwood..
No. Of Wires:
7pcs~61pcs
Overall Diameter:
5.6mm~41mm
Application:
Overhead Power System
Cross Section:
16- 800 Sq Mm
Highlight:

all aluminium alloy conductor

,

acsr conductor

Product Description

1 Application of All Aluminium Alloy Bare Conductors AAAC

The bare conductor: AAC,AAAC,ACSR,AACSR,ACAR and Galvanized steel wire, are used in overhead electrical power transmission and distribution lines with various grade voltage.



2 Standards of All Aluminium Alloy Bare Conductors AAAC



Our Bare conductor can meet or exceedthe item of cable international standards, such as:IEC 61089, BS 215 part1(AAC), BS 215 part2, BS 324201 (AAAC), DIN 48201 part 5 (AAC), DIN 48204, ASTM B231(AAC), ASTM B232(ACSR), BS EN 50182, BS EN 50183(AAAC), GB/T 1179-2008. Also we accept the OEM and the new design cable as customers.









Type Description No. of Wire

Section Area

(mm2)
AAC All Aluminum Conductor 7~127 16~1500
AAAC All Aluminum Alloy Conductor 7~91 17~1300
ACSR

Aluminum Conductors

Steel Reinforced

 7~103 16~1250
AACSR

Aluminum Alloy Conductors

Steel Reinforced

 7~103 16~1250
ACAR/AW

Aluminum Conductors

Aluminum Alloy Reinforced

 7~103 16~1250
ACSW/S

Aluminum Conductors

Aluminum Clad Steel Wire/Strand

 7~103 16~1250
GSW Galvanized Steel Wire 3/2.64~37/4.55 16.41~765.99





3. Specification

AAAC               EN 51082

  Area No. of Diameter   Mass per unit Rated DC
Code Name   wires Wire   Cond. length strength Resistance
  mm2   mm   mm kg/km kN Ω/km
Box 18.8 7 1.85   5.55 51.4 5.55 1.7480
Acacia 23.8 7 2.08   6.24 64.9 7.02 1.3828
Almond 30.1 7 2.34   7.02 82.2 8.88 1.0926
Cedar 35.5 7 2.54   7.62 96.8 10.46 0.9273
Deodar 42.2 7 2.77   8.31 115.2 12.44 0.7797
Fir 47.8 7 2.95   8.85 130.6 14.11 0.6875
Hazel 59.9 7 3.30   9.90 163.4 17.66 0.5494
Pine 71.6 7 3.61   10.8 195.6 21.14 0.4591
Holly 84.1 7 3.91   11.7 229.5 24.79 0.3913
Willow 89.7 7 4.04   12.1 245.0 26.47 0.3665
Oak 118.9 7 4.65   14.0 324.5 35.07 0.2767
Mulberry 150.9 19 3.18   15.9 414.3 44.52 0.2192
Ash 180.7 19 3.48   17.4 496.1 53.31 0.1830
Elm 211.0 19 3.76   18.8 579.2 62.24 0.1568
Poplar 239.4 37 2.87   20.1 659.4 70.61 0.1387
Sycamore 303.2 37 3.23   22.6 835.2 89.40 0.1095
Upas 362.1 37 3.53   24.7 997.5 106.82 0.0917
Yew 479.0 37 4.06   28.4 1319.6 141.31 0.0693
Totara 498.1 37 4.14   29.0 1372.1 146.93 0.0666
Rubus 586.9 61 3.50   31.5 1622.0 173.13 0.567
Sorbus 659.4 61 3.71   33.4 1822.5 194.53 0.0505
Araucaria 821.1 61 4.14   37.3 2269.4 242.24 0.0406
Redwood 996.2 61 4.56   41.0 2753.2 293.88 0.0334







All Aluminium Alloy Stranded Bare Conductors AAAC 18.8sq mm ~ 996sq mm 0
