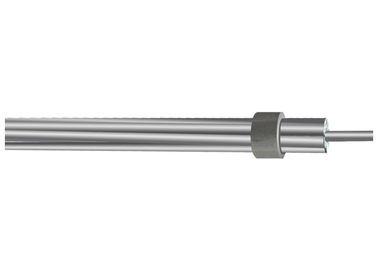

25-120 mm² Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire

MOQ: 0.5km
Standard Packaging: Wooden Drum or Steel Drum
Delivery Period: 7 Days or More
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 1000km per Month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
QINGDAO YICABLE CABLE
Certification
IEC61089
Material:
Steel
Code Name:
GJ
Area:
25sq Mm~120sq Mm
No. Of Wires:
7pcs Or 19pcs
Application:
Used For Communication Cables,overhead Power Lines
Overall Diameter:
6.6mm~14mm
Highlight:

aaac conductor

,

all aluminium alloy conductor

Product Description

Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire 25sq mm - 120sq mm



Application: Stay wire is used in communication cables,overhead power lines and the fixed obdects, such as tethered. Stay wire commonly be used in the power sector .

Conductor: steel

The Structure and the Specifications of the Stay wire

Cross Structure Actual Overall Force Kg/Km
Section No/Diameter Aera Diameter Tensile Strength
mm2 n/mm mm2 mm 1100 1250 1400 1550 1700
25 7/2.2 26.6 6.6 26300 29900 33500 37100 40700 228
35 7/2.6 37.2 7.8 36800 41800 46800 51800 56800 318
50 7/3.0 49.5 9 49000 55600 62300 69000 75700 424
70 19/2.2 72.2 11 71500 81200 91000 100000 110000 615
95 19/2.5 93.2 12.5 92300 105000 117000 130000 142000 795
120 19/2.8 116.9 14 116000 131000 147000 163000 179000 995















25-120 mm² Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire 0











CERTIFICATION



25-120 mm² Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire 1









FACTORY SHOW



25-120 mm² Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire 2









INSPECTION PROCESS



25-120 mm² Stay Wire Communication Cables Bare Conductor Bare Aluminum Wire 3
