Muticore Fire Resistant Cable Mica Tape Fire Protection ISO PCCC Certification

Muticore Fire Resistant Cable Mica Tape Fire Protection ISO PCCC Certification

Products - Fire Resistant Cable
  • Highlight

    fire rated cable

    ,

    fire resistant wire

  • Cable Type
    FRC Power Cable
  • Color
    Red ,Black,Yellow,Brown,Blue Or Customized
  • Conductor Size
    1.5mm2-800mm2
  • Rated Voltage
    600/1000V
  • Insulation
    PVC Or XLPE
  • Sample
    Free For 1.5 Meter
  • Number Of Cores
    1,2,3,4,5
  • Place of Origin
    China
  • Brand Name
    HOLD-ONE
  • Certification
    CE/KEMA/ISO/PCCC
  • Minimum Order Quantity
    1000m
  • Price
    USD0.03-5.0
  • Packaging Details
    100m/roll or customized
  • Delivery Time
    As per schedule
  • Supply Ability
    10KM per Week

Muticore Fire Resistant Cable Mica Tape Fire Protection ISO PCCC Certification

  • Muticore Fire Resistant Cable Mica Tape Fire Protection ISO PCCC Certification
Get Price Contact Now

Muticore Fire Resistant Cable , Fire Protection Cable ISO PCCC Certification



Applications

For laying indoors and outdoors. Able to bear certain traction during installation, but not external mechanical forces. Laying single core cable in magnetic ducts is
not allowed

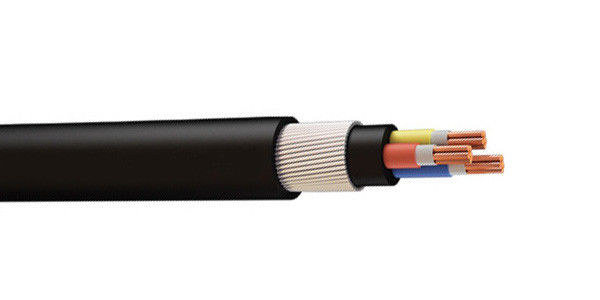

Cable Structure



Conductor : Class 1,2,5 Copper Conductor

Screen:        Mica tape

Insulation:    PVC or LSZH PO

Sheath:PVC: (Optional)

Rated Voltage : 600/1000v



Standards
International: IEC 60227,IEC60331
China: GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request



Technical Data


Rated voltage: 300/500 V
Max. Conductor Temp. in normal use: 90℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request

Nom. Cross-section of conductor Insulation Thickness Sheath Approx. Approx Max. D.C. Resistance of Conductor (20°C) Test Voltage Current Rating
mm2 mm Thickness O.D. Weight Ω/km A.C
    mm mm kg/km   kV/5min In air(A) In soil(A)
4×1.5 0.7 1.8 14.4 241 12.1 3.5 20 27
4×2.5 0.7 1.8 15.4 295 7.41 3.5 26 35
4×4 0.7 1.8 16.5 369 4.61 3.5 34 45
4×6 0.7 1.8 17.8 463 3.08 3.5 43 57
4×10 0.7 1.8 20.9 667 1.83 3.5 60 77
4×16 0.7 1.8 23.4 930 1.15 3.5 83 105
4×25 0.9 1.8 27.1 1351 0.727 3.5 105 125
4×35 0.9 1.8 29.5 1772 0.524 3.5 125 155
4×50 1 1.9 38.4 2380 0.387 3.5 160 185
4×70 1.1 2 43.2 3302 0.268 3.5 200 225
4×95 1.1 2.2 47.3 4330 0.193 3.5 245 270
4×120 1.2 2.3 52.5 5374 0.153 3.5 285 310
4×150 1.4 2.5 58.3 6655 0.124 3.5 325 345
4×185 1.6 2.7 64.7 8246 0.0991 3.5 375 390
4×240 1.7 2.9 73.1 10569 0.0754 3.5 440 450
5×1.5 0.7 1.8 13.6 284 12.1 3.5 20 27
5×2.5 0.7 1.8 16.6 349 7.41 3.5 26 35
5×4 0.7 1.8 17.9 441 4.61 3.5 34 45
5×6 0.7 1.8 19.3 558 3.08 3.5 43 57
5×10 0.7 1.8 22.8 809 1.83 3.5 60 77
5×16 0.7 1.8 25.6 1135 1.15 3.5 83 105
5×25 0.9 1.8 29.7 1664 0.727 3.5 105 125
5×35 0.9 1.9 32.6 2194 0.524 3.5 125 155
5×50 1 2 37.3 3013 0.387 3.5 160 185
5×70 1.1 2.1 42.9 4101 0.268 3.5 200 225
5×95 1.1 2.2 48.2 5382 0.193 3.5 245 270
5×120 1.2 2.4 52.7 6685 0.153 3.5 285 310
5×150 1.4 2.5 58.5 8363 0.124 3.5 325 345
5×185 1.6 2.7 65.1 10268 0.0991 3.5 375 390
5×240 1.7 3.1 72.3 13167 0.0754 3.5 440 450



We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!


About us

Founded in 2000, HOLD-ONE. is a modern large-scale enterprise specializing in R&D and manufacturing of wire and cable. The company has an insulated wire workshop, a low voltage cable workshop, a high voltage cable workshop and cable accessories, and a copper processing workshop. It consists of administrative affairs department, marketing department, technology research and development department, quality management department, planning and finance department, material supply department, safety production department, etc., and has sales and service organizations in 106 large and medium cities across the country. The company's leading products are: rubber sheathed flexible cable, polyethylene sheathed flexible cable, PVC insulated control cable, PVC insulated power cable, overhead insulated cable, aluminum stranded wire and steel core aluminum stranded wire, PVC insulated Sheath (soft) wire and cable, etc., and focus on the development and production of low-smoke halogen-free, low-smoke low-halogen, pre-branch cable and various flame retardant, fire-resistant, shielding and other special cables up to more than 10,000 specifications. The annual production capacity can reach 1 billion yuan. Companies can produce according to national or international standards.
